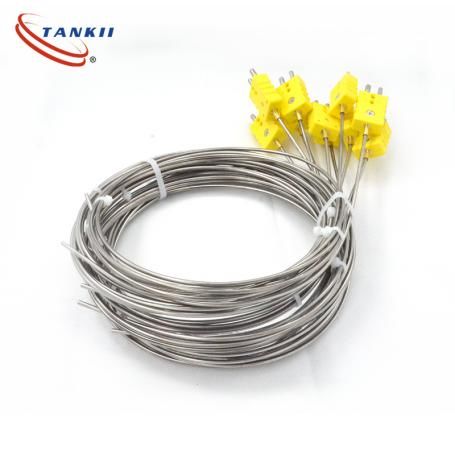

Thermocouple wires are essential components in temperature measurement systems, widely used across industries such as manufacturing, HVAC, automotive, aerospace, and scientific research. At Tankii, we specialize in producing high-performance thermocouple wires designed for precision, durability, and reliability in even the most demanding environments.
How Does a Thermocouple Wire Work?
A thermocouple consists of two dissimilar metal wires joined at one end (the "hot" or measuring junction). When this junction is exposed to heat, it generates a small voltage due to the Seebeck effect—a phenomenon where temperature differences between two connected metals produce an electrical potential. This voltage is measured at the other end (the "cold" or reference junction) and converted into a temperature reading.
The key advantage of thermocouples is their ability to measure a wide range of temperatures, from cryogenic conditions up to extreme heat, depending on the wire type.
Types of Thermocouple Wires We Offer
We provide a complete selection of thermocouple wires to suit various industrial and commercial needs:
Type K Thermocouple Wire (Nickel-Chromium / Nickel-Alumel)
Temperature Range: -200°C to 1260°C (-328°F to 2300°F)
Applications: General-purpose industrial use, furnaces, chemical processing
Advantages: Wide temperature range, good accuracy, and oxidation resistance
Type J Thermocouple Wire (Iron / Constantan)
Temperature Range: 0°C to 760°C (32°F to 1400°F)
Applications: Food processing, plastic injection molding, vacuum environments
Advantages: High sensitivity, cost-effective for moderate temperatures
Type T Thermocouple Wire (Copper / Constantan)
Temperature Range: -200°C to 370°C (-328°F to 700°F)
Applications: Cryogenics, medical equipment, laboratory testing
Advantages: Excellent stability at low temperatures, moisture-resistant
Type E Thermocouple Wire (Nickel-Chromium / Constantan)
Temperature Range: -200°C to 900°C (-328°F to 1652°F)
Applications: Power plants, pharmaceutical manufacturing
Advantages: Highest output signal among standard thermocouples
High-Temperature Specialty Wires (Type R, S, B, and Custom Alloys)
For extreme environments such as aerospace, metallurgy, and semiconductor manufacturing
Key Features of Our Thermocouple Wires
High Accuracy & Consistency – Manufactured to meet ANSI, ASTM, IEC, and NIST standards

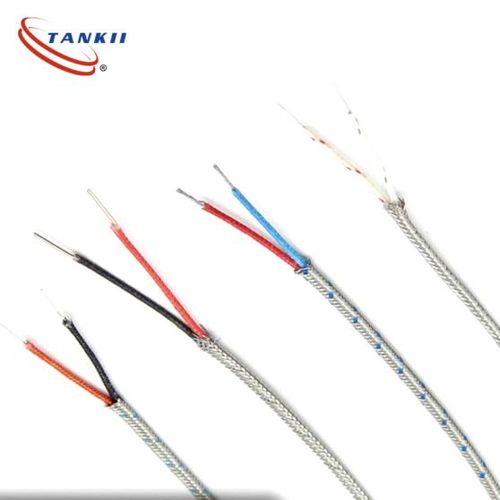

Durable Insulation Options – Available in fiberglass, PTFE, ceramic, and metal sheathing for harsh conditions
Flexible & Customizable – Different gauges, lengths, and shielding materials to fit specific applications
Long-Term Reliability – Resistant to oxidation, vibration, and thermal cycling
Fast Response Time – Ensures real-time temperature monitoring
Common Applications of Thermocouple Wires
Industrial Process Control – Monitoring furnaces, boilers, and reactors
HVAC Systems – Temperature regulation in heating and cooling systems
Food & Beverage Industry – Ensuring safe cooking, pasteurization, and storage
Automotive & Aerospace – Engine testing, exhaust monitoring, and thermal management
Medical & Laboratory Equipment – Sterilization, incubators, and cryogenic storage
Energy & Power Plants – Turbine and exhaust gas temperature measurement
Why Choose Our Thermocouple Wires?
At Tankii, we combine advanced metallurgy, precision engineering, and strict quality control to deliver thermocouple wires that outperform industry standards. Our products are trusted by leading manufacturers and research institutions worldwide for their:
Superior Material Quality – Only high-purity alloys for consistent performance
Custom Solutions – Tailored wire configurations for specialized needs
Competitive Pricing – Cost-effective without compromising durability
Expert Support – Technical assistance to help you select the right thermocouple for your application
Whether you need standard thermocouple wires or custom-engineered solutions, we have the expertise to meet your requirements.
Contact us today to discuss your project or request a quote!
