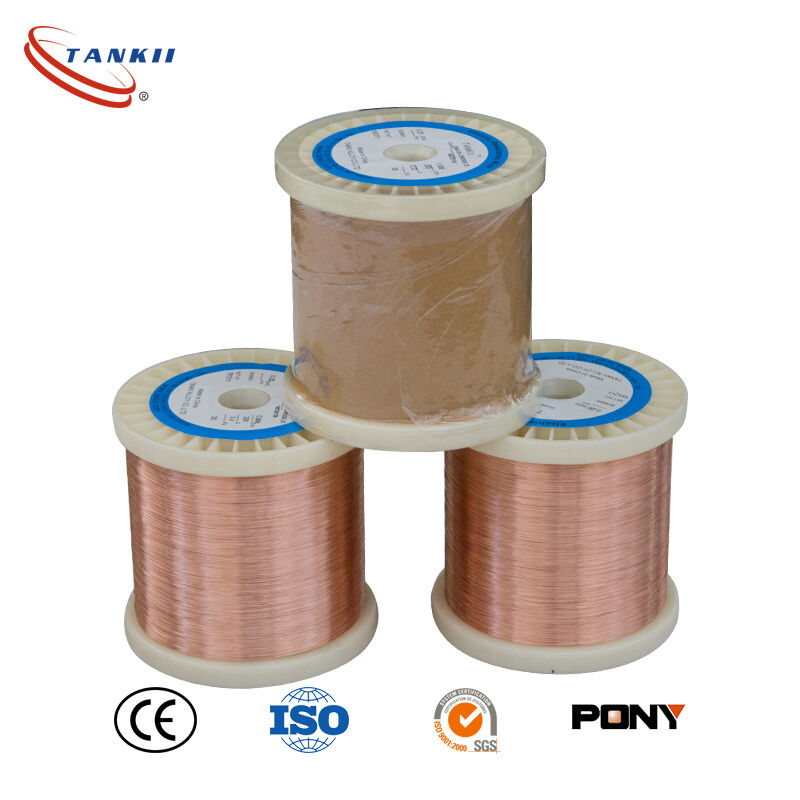

6J12 Precision Manganin 47 Resistance Wire Excellent Long Term Stability for Standard Resistor & Metrology Measuring Instruments

제품 상세정보

원래 장소: 중국

브랜드 이름: Tankii

인증: ISO 9001

모델 번호: 망가닌 47

지불과 운송 용어

최소 주문 수량: 30KG

가격: negotiate

포장 세부 사항: 판지 상자

배달 시간: 2~3주

공급 능력: 연간 5000Tons

최상의 가격을 얻으세요
지금 연락하세요
사양
강조하다:
재료:
망가닌 47
모델:
6J12
모양:
와이어/스트립/포일
밀도:
8.4g/cm3
탄력성:
47μΩ/cm
연장:
≥15%
TCR:
-3-+20(*10^﹣6/℃)
EMF 대 Cu μV/℃:
≤1
재료:
망가닌 47
모델:
6J12
모양:
와이어/스트립/포일
밀도:
8.4g/cm3
탄력성:
47μΩ/cm
연장:
≥15%
TCR:
-3-+20(*10^﹣6/℃)
EMF 대 Cu μV/℃:
≤1
설명
6J12 Precision Manganin 47 Resistance Wire Excellent Long Term Stability for Standard Resistor & Metrology Measuring Instruments
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire

Chemical Content, %
Ni Mn Fe Si Cu Other RoHS Directive
CD Pb Hg Cr
- 10.5-12.5 - - Bal - ND ND ND ND

Mechanical Properties
Max Continuous Service Temp 0-45ºC
Resisivity at 20ºC 0.49±0.03ohm mm2/m
Density 8.g/cm3
Temp Coefficient of Resistance at 20 ºC -80~+80α×10-6/ºC
Melting Point 1450ºC
Tensile Strength(Hard) 635 MPa(min)
Tensile Strength,N/mm2   Annealed,Soft 340~535
Elongation 15%(min)
EMF vs Cu, μV/ºC (0~100ºC) 2
Micrographic Structure Austenite
Magnetic Property Non
Micrographic Structure Ferrite
Magnetic Property Magnetic
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
