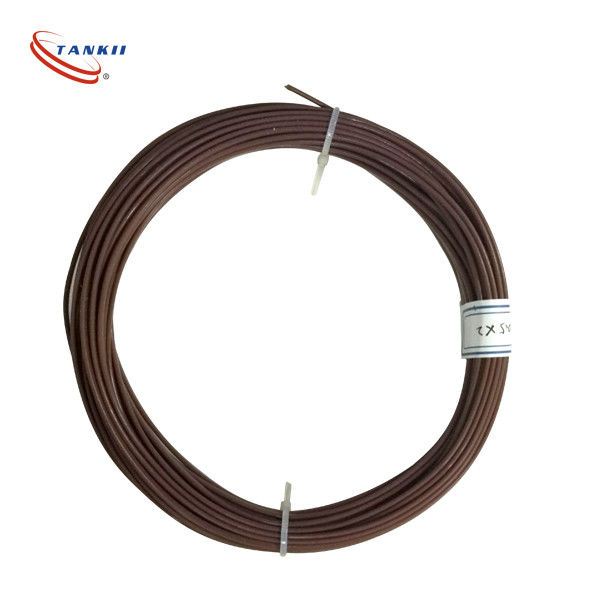

IEC Standard T Type Thermocouple Cable 2*24AWG 2*26AWG With PFA Insulation And Jacket Used For Refrigeration Monitoring

IEC Standard T Type Thermocouple Cable 2*24AWG 2*26AWG With PFA Insulation And Jacket Used For Refrigeration Monitoring

Product Description:

Type T thermocouples (copper-constantan thermocouples) are best suited for measuring medium to low temperatures ranging from -200℃ to +350℃. Their biggest advantages are high accuracy and stability at low temperatures, and because the positive electrode is pure copper, it is non-magnetic and will not interfere with the magnetic field environment. However, because the positive electrode is copper, it is prone to oxidation at high temperatures, so it must never be used in high-temperature applications exceeding 350℃.

Application Areas and Typical Temperature Measurement Scenarios: Why Use T-Type Thermocouples?

🏥 Medical and Life Sciences: Cold storage monitoring of blood banks and vaccines (2~8℃), cryosurgery treatment (-196℃ liquid nitrogen environment), and constant temperature control in incubators. Extremely high accuracy at low temperatures; the material is non-magnetic, will not interfere with precision medical equipment such as MRI, and has good biocompatibility.

🍎 Food Processing and Cold Chain: Temperature monitoring for yogurt fermentation at 42℃, juice pasteurization at 80℃, quick-freezing tunnels, and refrigerated transportation. Relatively low cost, suitable for large-scale deployment in food production lines; when used with (PFA) or waterproof protective tubing, it can withstand frequent steam and chemical cleaning.

🔬 Scientific Research and Laboratories: Performance testing of materials at low temperatures, cooling monitoring of superconducting magnets, and outdoor temperature measurement in weather stations and polar expeditions. Stable and highly accurate in the liquid nitrogen temperature range (-196℃), it is the first choice for many low-temperature physics experiments and can even be used as a second-class standard thermocouple to transmit low-temperature values.

⚙️ Industrial and Equipment Testing: Injection molding machine cooling water channel temperature control (20~60℃), chemical reactor jacket temperature measurement, motor or circuit board temperature monitoring. Fast response, high sensitivity, and accurate detection of minute temperature changes, suitable for applications with high control requirements.

🏠 Home Appliances and Everyday Use: Performance testing and temperature calibration of home appliances such as ovens and water heaters. Affordable and meets the measurement needs of low-temperature scenarios in daily life, offering high cost-effectiveness.

Conductor materials:

Thermocouple cables come in several variations, primarily distinguished by their insulation materials and construction to suit different environmental conditions and applications.

Here are the main types:

1. PVC Insulated: Suitable for general-purpose applications with moderate temperature ranges.
2. Fiberglass Insulated: Used for higher temperature applications, offering better heat resistance.
3. PTFE Insulated: Ideal for applications requiring chemical resistance and flexibility in low to moderate temperatures.
4. Silicone Insulated: Provides good flexibility and heat resistance, often used in high-temperature environments.
5. Mineral Insulated (MI): Features a metal sheath with magnesium oxide insulation, suitable for high temperatures, harsh environments, and where mechanical protection is needed.

Each type is chosen based on specific operational requirements, such as temperature range, chemical exposure, and mechanical durability.

Technical Parameters:

FAQ:

Q: What is the brand name of this Thermocouple Cable?

A: The brand name of this Thermocouple Cable is Tankii.

Q: What are the different model numbers available for this Thermocouple Cable?

A: The different model numbers available for this Thermocouple Cable are KX/KC, JX, EX, TX, NX, SC

Q: Where is this Thermocouple Cable manufactured?

A: This Thermocouple Cable is manufactured in China.

Q: What are the temperature ranges supported by this Thermocouple Cable?

A: The temperature ranges supported by this Thermocouple Cable vary depending on the model number. Please refer to the product specifications for more information.

Q: Is this Thermocouple Cable suitable for use in harsh industrial environments?

A: Yes, this Thermocouple Cable is designed to be durable and reliable in harsh industrial environments.
