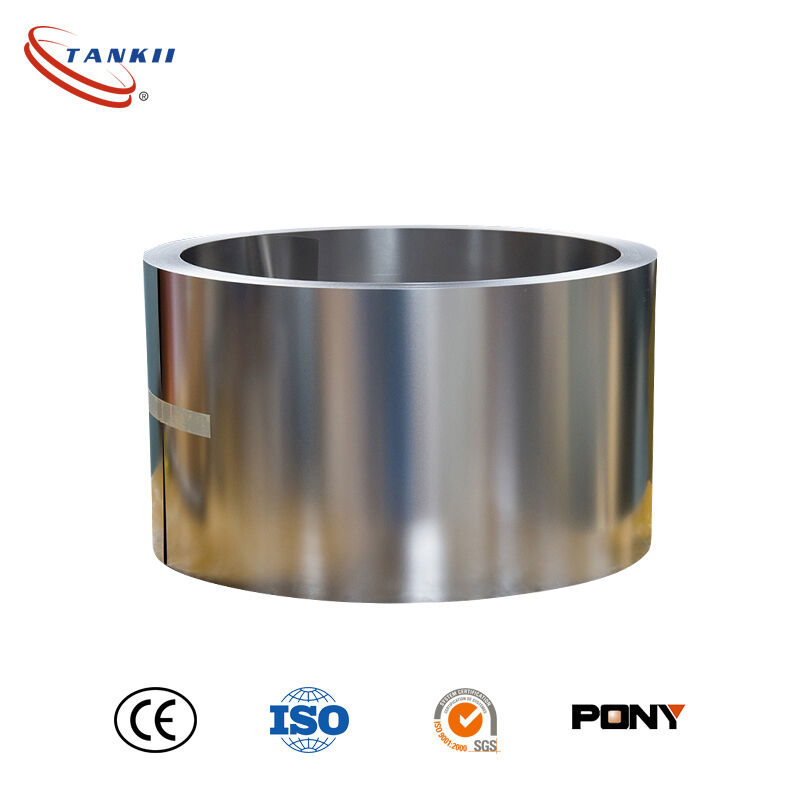

1K101 Nanocrystalline Alloy Ribbon for Current Transformer Core

Name: 1K101 Nanocrystalline Alloy Ribbon for Current Transformer Core
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 1K101
Price: 35.00 USD
Availability: InStock

제품 상세정보

원래 장소: 중국

브랜드 이름: TANKII

인증: ISO9001

모델 번호: 1K101

지불과 운송 용어

최소 주문 수량: 10KG

가격: 협상 가능

포장 세부 사항: 판지 포장

배달 시간: 7~20일

지불 조건: 티/티

공급 능력: 500개 킬로그램 / 달

최상의 가격을 얻으세요

지금 연락하세요

사양

설명

사양

강조하다:

재료:	Fe계 나노결정 합금	등급:	1K101
두께:	0.025 - 0.035mm	너비:	5~300mm
포화 유도:	≥1.20T	침투성:	높은
애플리케이션:	전류 변압기 코어

재료:	Fe계 나노결정 합금
등급:	1K101
두께:	0.025 - 0.035mm
너비:	5~300mm
포화 유도:	≥1.20T
침투성:	높은
애플리케이션:	전류 변압기 코어

설명

1K101 Nanocrystalline Alloy Ribbon for Current Transformer Core

Product Description

Product Name	1K101 Nanocrystalline Ribbon 0.025mm Soft Magnetic Alloy Strip
Customized support	OEM, ODM
Place of Origin	China
Brand Name	Tankii

Product Introduction:

1K101 nanocrystalline ribbon is a Fe-based soft magnetic alloy manufactured by rapid solidification technology. With a thickness of 0.025 mm, it offers high permeability, low core loss, high saturation flux density and excellent thermal stability. The material is widely used for manufacturing nanocrystalline transformer cores, current transformer cores, current sensors, common mode chokes, EMI suppression components and other high-performance magnetic devices. Custom widths and slit sizes are available according to customer requirements.

Applications:
The product is mainly used to replace silicon steel sheet and used in many ways, such as: different power of frequency distribution transformers, power factor correction inductors, small transformers, high-power rectangular iron core, the output energy storage filter inductors, saturable reactor, anti-jamming filter inductorand IF transformer iron core. The working frequency range of the product is from 50Hz to 10kHz. When it is used as the iron core materials of a high-power switching power reactor , the using frequencies of the product can be up to 50kHz.

Physical Properties
Saturation magnetic flux density Bs	1.5 T
Curie temperature Tc	410ºC
Crystallization temperature Tx	535ºC
Saturationmagnetostriction coefficientλs	27×10-6
Density d	7.18 (g/cm3)
Resistivity ρ	137µΩ·cm
Continuous operating temperature	150ºC
