제품 상세정보
원래 장소: 중국
브랜드 이름: Tankii
인증: ISO 9001, SGS, RoHS
모델 번호: CUNI44
지불과 운송 용어
최소 주문 수량: 10
가격: 15usd
포장 세부 사항: 나무+스풀+판지 상자
배달 시간: 영업일 기준 10-25일
지불 조건: L/C, T/T, 웨스턴 유니온
공급 능력: 2000톤/년
녹는점: |
1280 |
무게: |
기반을 둔 |
화학 성분: |
니 76% |
용법: |
넓게 |
열전도율: |
낮거나 중간 정도 |
부식 저항: |
훌륭한 |

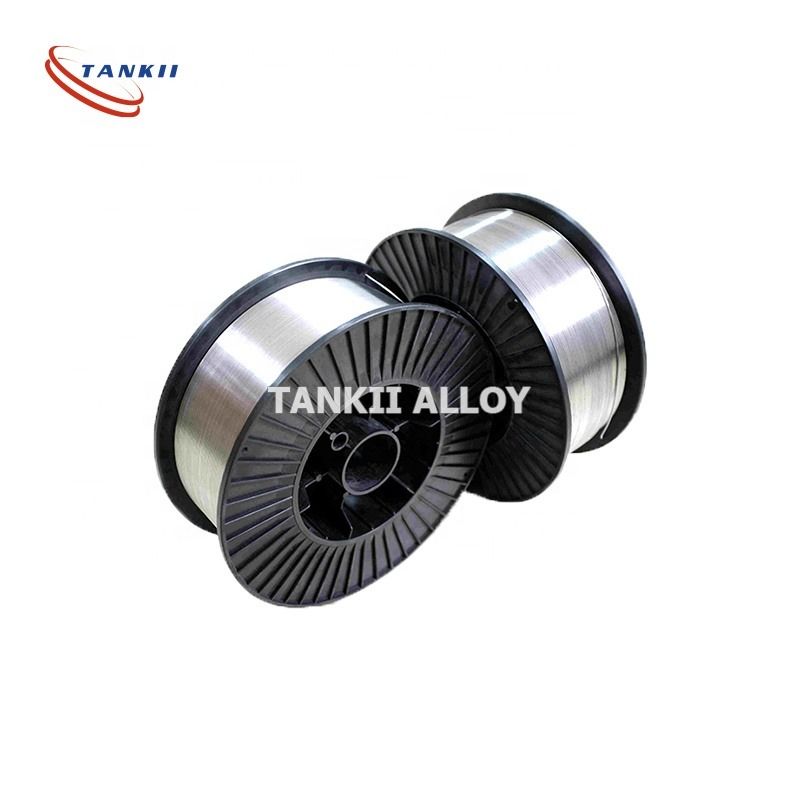

스풀: |
DIN 80-DIN200 |
상태: |
부드러운 |
도체 재료: |
순수한 니켈 와이어 |
사양: |
0.07-8.0mm |
공칭 모델: |
CuNi44, CuNi23,CuNi10 |
표준사양: |
ASTM B127, ASTM B164 |
크기: |
0.16-25mm |
수업: |
130,155,180,200,220 |
녹는점: |
1280 |
무게: |
기반을 둔 |
화학 성분: |
니 76% |
용법: |
넓게 |
열전도율: |
낮거나 중간 정도 |
부식 저항: |
훌륭한 |
스풀: |
DIN 80-DIN200 |
상태: |
부드러운 |
도체 재료: |
순수한 니켈 와이어 |
사양: |
0.07-8.0mm |
공칭 모델: |
CuNi44, CuNi23,CuNi10 |
표준사양: |
ASTM B127, ASTM B164 |
크기: |
0.16-25mm |
수업: |
130,155,180,200,220 |
CuNi44 alloy (also known as Constantan, Alloy 300, Cuprothal 294, Cupron) is a copper-nickel resistance alloy with 44% nickel content. It features an extremely low temperature coefficient of resistance (TCR), making it ideally suited for precision resistors, shunts, thermocouple extension wires, and low-temperature heating applications.
Our CuNi44 wire offers excellent resistance consistency, good weldability, and long-term stability. It is widely used in electrical instruments, automotive sensors, aerospace control systems, and laboratory equipment.
We can supply round wire, flat wire, and ribbon/strip in various diameters and tolerances
Chemical Content, %
|
Ni |
Mn |
Fe |
Si |
Cu |
Other |
ROHS Directive |
|||
|
Cd |
Pb |
Hg |
Cr |
||||||
|
44 |
1.50% |
0.5 |
- |
Bal |
- |
ND |
ND |
ND |
ND |
Mechanical Properties
|
Max Continuous Service Temp |
400ºC |
|
Resisivity at 20ºC |
0.49±5%ohm mm2/m |
|
Density |
8.9 g/cm3 |
|
Thermal Conductivity |
-6(Max) |
|
Melting Point |
1280ºC |
|
Tensile Strength,N/mm2 Annealed,Soft |
340~535 Mpa |
|
Tensile Strength,N/mm3 Cold Rolled |
680~1070 Mpa |
|
Elongation(anneal) |
25%(Min) |
|
Elongation(cold rolled) |
≥Min)2%(Min) |
|
EMF vs Cu, μV/ºC (0~100ºC) |
-43 |
|
Micrographic Structure |
austenite |
|
Magnetic Property |
Non |
Applications:
Precision wirewound resistors and shunts
Thermocouple extension wire (Type S, R, B - compensating conductors)
Low-voltage circuit breakers and thermal overload relays
Low-temperature heating elements (e.g., floor heating cables)
Automotive sensors and instrument shunts
Laboratory resistance standards
Why Choose Our CuNi44 Wire?
Strict raw material control (virgin nickel & copper, no recycled scrap)
Advanced drawing and annealing process ensures uniform resistivity and smooth surface
±0.005 mm tolerance available for precision applications
RoHS, REACH, SGS test report can be provided
Short lead time: 15-20 days for bulk orders
Contact us for a free quote or sample request.
