제품 상세정보
원래 장소: 중국
브랜드 이름: Tankii
인증: ISO9001 Rohs
모델 번호: Ni201 파이프
지불과 운송 용어
최소 주문 수량: 500 PC
가격: 협상 가능
포장 세부 사항: 나무 케이스
배달 시간: 15-25일
지불 조건: L/C, T/T, 웨스턴 유니온
공급 능력: 연간 2000Tons
재료: |
순수한 니켈 |
청정: |
> 99.95% |
모양: |
둥근 파이프 |
밀도: |
8.9 (G/CM3) |
표면: |
밝은 |
기원: |
중국 상하이 |
재료: |
순수한 니켈 |
청정: |
> 99.95% |
모양: |
둥근 파이프 |
밀도: |
8.9 (G/CM3) |
표면: |
밝은 |
기원: |
중국 상하이 |

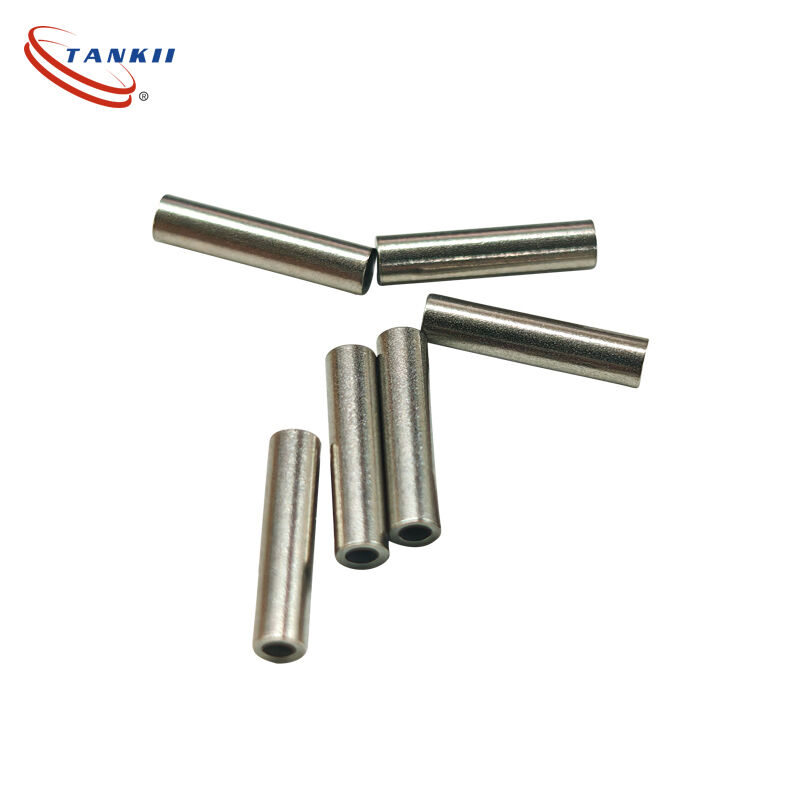

High Purity Nickel High Temperature Resistant Micro Seamless Tube OD 1.8mm WT 0.15mm for Sensor
General Description
Commercially wrought Nickel 200 ( UNS N02200) , a grade of pure nickel contains 99.2% nickel, has excellent mechanical properties, magnetic properties, high thermal, electrical conductivity and excellent resistance to many corrosive environment. Nickel 200 is useful in any environment below 600ºF(315ºC). It has highly resistance to neutral and alkaline salt solutions. Nickel 200 also has low corrosion rates in neutral and distilled water.
The applications of pure nickel includes food processing equipment, magnetostrictive devices and rechargeable batteries, computers, cellular Phone, power tools, camcorders and so on.
Chemical Composition
| Alloy | Ni% | Mn% | Fe% | Si% | Cu% | C% | S% |
| Nickel 200 | Min 99.2 | Max 0.35 | Max 0.4 | Max 0.35 | Max 0.25 | Max 0.15 | Max 0.01 |
Physical Data
| Density | 8.89g/cm3 |
| Specific Heat | 0.109(456 J/kg.ºC) |
| Electrical Resistivity | 0.096×10-6ohm.m |
| Melting Point | 1435-1446ºC |
| Thermal Conductivity | 70.2 W/m-K |
| Mean Coeff Thermal Expansion | 13.3×10-6m/m.ºC |
Typical Mechanical Properties
| Mechanical Properties | Nickel 200 |
| Tensile Strength | 462 Mpa |
| Yield Strength | 148 Mpa |
| Elongation | 47% |
Our Production Standard
| Bar | Forging | Pipe | Sheet/Strip | Wire | |
| ASTM | ASTM B160 | ASTM B564 | ASTM B161/B163/B725/B751 | AMS B162 | ASTM B166 |
