제품 상세정보
원래 장소: 중국 상하이
브랜드 이름: TANKII
인증: ISO9001 SGS
모델 번호: 페니36
지불과 운송 용어
최소 주문 수량: 10kg
가격: 협상 가능
포장 세부 사항: 나무 케이스
배달 시간: 7~20일
지불 조건: L/C, T/T, 웨스턴 유니온
공급 능력: 달 당 100 톤

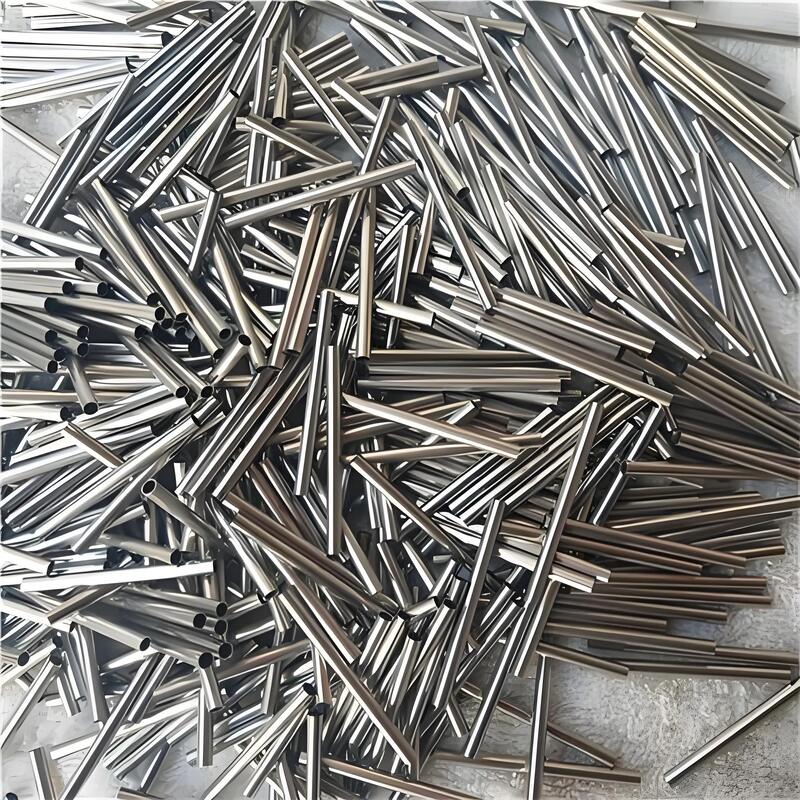

모델 번호.: |
인바르 |
OD: |
0.2 밀리미터 분. |
WT: |
0.015mm |
길이: |
0.2 밀리미터 분. |
모양: |
코일 파이프; 모세관 파이프, 원활한 파이프 |
표면: |
밝은 |
견본: |
받아들인 소액 주문 |
모델 번호.: |
인바르 |
OD: |
0.2 밀리미터 분. |
WT: |
0.015mm |
길이: |
0.2 밀리미터 분. |
모양: |
코일 파이프; 모세관 파이프, 원활한 파이프 |
표면: |
밝은 |
견본: |
받아들인 소액 주문 |
4J36 (Invar) is used where high dimensional stability is required, such as precision instruments, clocks, seismic creep gauges, television shadow-mask frames, valves in motors, and antimagnetic watches. In land surveying, when first-order (high-precision) elevation leveling is to be performed, the Level staff (leveling rod) used is made of Invar, instead of wood, fiberglass, or other metals. Invar struts were used in some pistons to limit their thermal expansion inside their cylinders.
4J36 use oxyacetylene welding, electric arc welding, welding and other welding methods. Since the coefficient of expansion and chemical composition of the alloy is related should be avoided due to welding causes a change in the alloy composition, it is preferable to use Argon arc welding welding filler metals preferably contains 0.5% to 1.5% titanium, in order to reduce weld porosity and crack.
Normal composition%
| Ni | 35~37.0 | Fe | Bal. | Co | - | Si | ≤0.3 |
| Mo | - | Cu | - | Cr | - | Mn | 0.2~0.6 |
| C | ≤0.05 | P | ≤0.02 | S | ≤0.02 |
Coefficient of expansion
| θ/ºC | α1/10-6ºC-1 | θ/ºC | α1/10-6ºC-1 |
| 20~-60 | 1.8 | 20~250 | 3.6 |
| 20~-40 | 1.8 | 20~300 | 5.2 |
| 20~-20 | 1.6 | 20~350 | 6.5 |
| 20~-0 | 1.6 | 20~400 | 7.8 |
| 20~50 | 1.1 | 20~450 | 8.9 |
| 20~100 | 1.4 | 20~500 | 9.7 |
| 20~150 | 1.9 | 20~550 | 10.4 |
| 20~200 | 2.5 | 20~600 | 11.0 |
Typical Physical properties
| Density (g/cm3) | 8.1 |
| Electrical resistivity at 20ºC(OMmm2/m) | 0.78 |
| Temperature factor of resistivity(20ºC~200ºC)X10-6/ºC | 3.7~3.9 |
| Thermal conductivity, λ/ W/(m*ºC) | 11 |
| Curie point Tc/ ºC | 230 |
| Elastic Modulus, E/ Gpa | 144 |
DATASHEET FOR:STEEL GRADES:SPECIAL ALLOY:4J42
Chemical composition(mass fraction)(wt.%) of the 4J42
| C(%) | Si(%) | Mn(%) | P(%) | S(%) | Ni(%) | Co(%) | Al(%) | Fe(%) | |
| 0.05 | ≤0.30 | ≤0.80 | 0.020 | 0.020 | 41.5-42.5 | ≤0.1 | ≤0.1 | Bal | |
Mechanical properties / Mechanische Eigenschaften / Caracteristiques mecaniques of grade4J42
MECHANICAL PROPERTIES
| Yield Rp0.2(MPa) |
Tensile Rm(MPa) |
Impact KV/Ku (J) |
Elongation A (%) |
Reduction in cross section on fracture Z (%) |
As-Heat-Treated Condition | Brinell hardness (HBW) |
| 232 (≥) | 934 (≥) | 22 | 23 | 14 | Solution and Aging, Annealing, Ausaging, Q+T,etc | 111 |
PHYSICAL PROPERTIES
| Temper (°C) |
Modulus of elasticity (GPa) |
Mean coefficient of thermal expansion 10-6/(°C) between 20(°C) and | Thermal conductivity (W/m·°C) |
Specific thermal capacity (J/kg·°C) |
Specific electrical resistivity (Ω mm²/m) |
Density (kg/dm³) |
Poisson's coefficient, ν |
| 11 | - | - | 0.14 | - | |||
| 364 | 336 | - | 43.3 | 311 | - | ||
| 748 | - | 22 | 43.2 | 211 | 141 |
