제품 상세정보
원래 장소: 중국
브랜드 이름: Tankii
인증: ISO9001
모델 번호: 에나멜 와이어
지불과 운송 용어
최소 주문 수량: 5kg
가격: 25-35USD/KG
포장 세부 사항: 사례
배달 시간: 10-30일
지불 조건: 서부 동맹, T/T, D/P, D/A, L/C
공급 능력: 2000kg/월
봉사합니다: |
Samll 주문이 허용됩니다 |
견본: |
5kg |
색상: |
레드, 블랙, 실버 등, |
지름: |
0.02-1.5mm |
포장: |
스풀+상자 |
봉사합니다: |
Samll 주문이 허용됩니다 |
견본: |
5kg |
색상: |
레드, 블랙, 실버 등, |
지름: |
0.02-1.5mm |
포장: |
스풀+상자 |

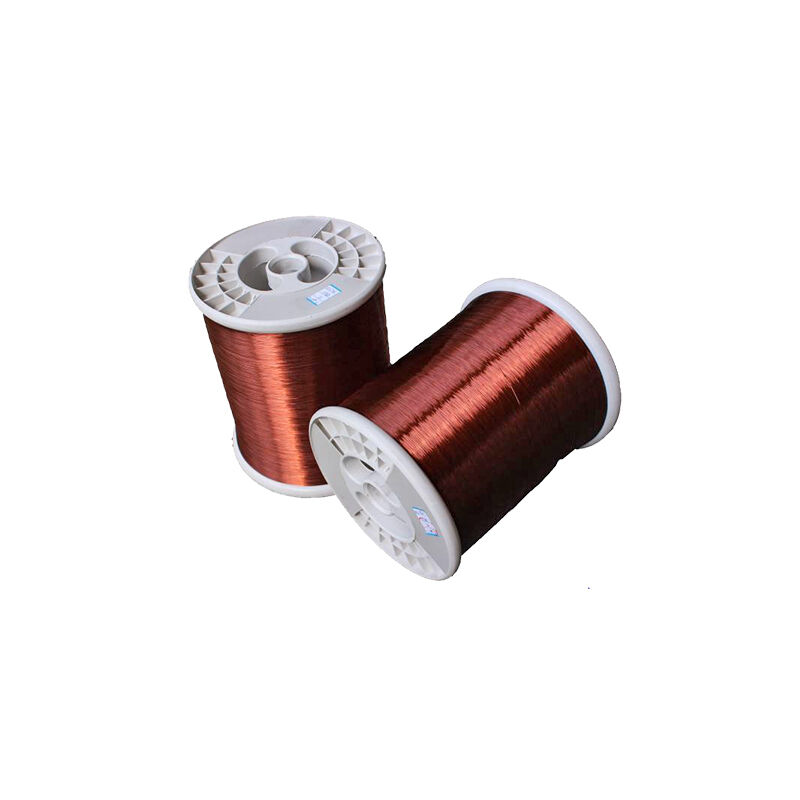

Enamelled Constantan resistor copper nickel alloy Wire
TANKII Nickel-Copper alloy wire used mainly for its medium range electrical resistivity and very low temperature-coefficient of resistance.
Applications include power resistors, shunts, thermocouples and wire-wound precision resistors having operating temperatures up to 400 degree.
The copper-based low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.
Type of insulation
| Insulation-enamelled Name | Thermal LevelºC (working time 2000h) |
Code Name | GB Code | ANSI. TYPE |
| Polyurethane enamelled wire | 130 | UEW | QA | MW75C |
| Polyester enamelled wire | 155 | PEW | QZ | MW5C |
| Polyester-imide enamelled wire | 180 | EIW | QZY | MW30C |
| Polyester-imide and polyamide-imide double coated enameled wire | 200 | EIWH (DFWF) |
QZY/XY | MW35C |
| Polyamide-imide enamelled wire | 220 | AIW | QXY | MW81C |
