제품 상세정보
원래 장소: 중국
브랜드 이름: Tankii
인증: ISO9001 Rohs
모델 번호: Ni80Cr20
지불과 운송 용어
최소 주문 수량: 5kg
가격: 협상 가능
포장 세부 사항: 나무 케이스
배달 시간: 15-25일
지불 조건: L/C, T/T, 웨스턴 유니온
공급 능력: 매년마다 1000 톤
Product Description

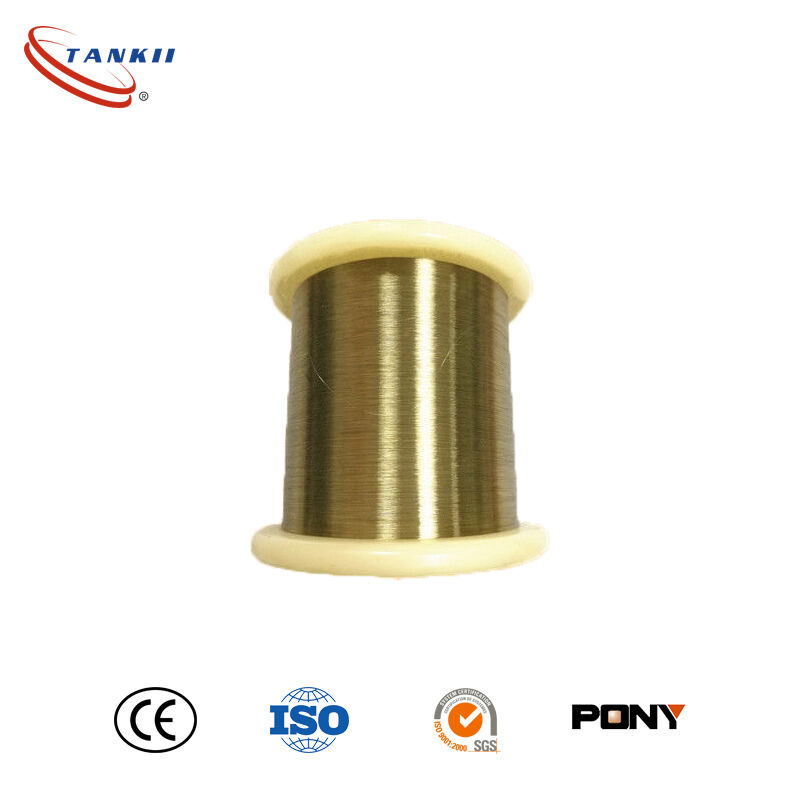

These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.
Type Of Nichrome Wire
NiCr80/20,NiCr70/30,NiCr60/15,NiCr90/10,NiCr35/20,NiCr30/20
Type of Insulation
| Insulation-enamelled Name |
Thermal LevelºC (working time 2000h) |
Code Name | GB Code | ANSI. TYPE |
| Polyurethane enamelled wire | 130 | UEW | QA | MW75C |
| Polyester enamelled wire | 155 | PEW | QZ | MW5C |
| Polyester-imide enamelled wire | 180 | EIW | QZY | MW30C |
| Polyester-imide and polyamide-imide double coated enameled wire | 200 |
EIWH (DFWF) |
QZY/XY | MW35C |
| Polyamide-imide enamelled wire | 220 | AIW | QXY | MW81C |
The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire
|
main property type |
Cuni1 | CuNI2 | CuNI6 | CuNi8 | CuNI10 | CuNi14 | CuNi19 | CuNi23 | CuNi30 | CuNi34 | CuNI44 | |
|
main chemical composition |
Ni | 1 | 2 | 6 | 8 | 10 | 14.2 | 19 | 23 | 30 | 34 | 44 |
| MN | / | / | / | / | / | 0.3 | 0.5 | 0.5 | 1.0 | 1.0 | 1.0 | |
| CU | rest | rest | rest | rest | rest | rest | rest | rest | rest | rest | rest | |
|
max working temperature |
/ | 200 | 220 | 250 | 250 | 300 | 300 | 300 | 350 | 350 | 400 | |
|
density g/cm3 |
8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | |
|
resistivity at 20 °c |
0.03 ± 10% |
0.05± 10% |
0.10± 10% |
0.12± 10% |
0.15± 10% |
0.20± 5% |
0.25± 5% |
0.30± 5% |
0.35± 5% |
0.40± 5% |
0.49± 5% |
|
|
temperature coefficient of resistance |
<100 | <120 | <60 | <57 | <50 | <38 | <25 | <16 | <10 | -0 | <-6 | |
|
tensile strength mpa |
>210 | >220 | >250 | >270 | >290 | >310 | >340 | >350 | >400 | >400 | >420 | |
| elongation | >25 | >25 | >25 | >25 | >25 | >25 | >25 | >25 | >25 | >25 | >25 | |
|
melting point °c |
1085 | 1090 | 1095 | 1097 | 1100 | 1115 | 1135 | 1150 | 1170 | 1180 | 1280 | |
|
coefficient of conductivity |
145 | 130 | 92 | 75 | 59 | 48 | 38 | 33 | 27 | 25 | 23 |
Round wire:0.018mm~3.0mm
Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.
Ribbon Size:0.01mm*0.2mm~1.2mm*24mm
Moq:5kg each size
