제품 상세정보
Place of Origin: Shanghai, China
브랜드 이름: TANKII
인증: ISO9001
Model Number: TK41152
지불과 운송 용어
Minimum Order Quantity: 1KG
가격: 협상 가능
Packaging Details: Wooden Case
Delivery Time: 7-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Tons per month
Material: |
nickel Iron alloy tubes |
Name: |
TK41152 |
sample: |
accepted small order |
OD: |
0.3mm-8.0mm |
WT: |
0.015mm Min. |
Condition: |
Soft / Hard / Middle |
surface: |
Bright |
ID: |
0.10 mm Min. |
Length: |
0.25 mm Min. |
standard: |
GB/ASTM/JIS/BIS/DIN |
Alloy Type: |
Expansion Alloy |
Process: |
cold rolled |
Material: |
nickel Iron alloy tubes |
Name: |
TK41152 |
sample: |
accepted small order |
OD: |
0.3mm-8.0mm |
WT: |
0.015mm Min. |
Condition: |
Soft / Hard / Middle |
surface: |
Bright |
ID: |
0.10 mm Min. |
Length: |
0.25 mm Min. |
standard: |
GB/ASTM/JIS/BIS/DIN |
Alloy Type: |
Expansion Alloy |
Process: |
cold rolled |

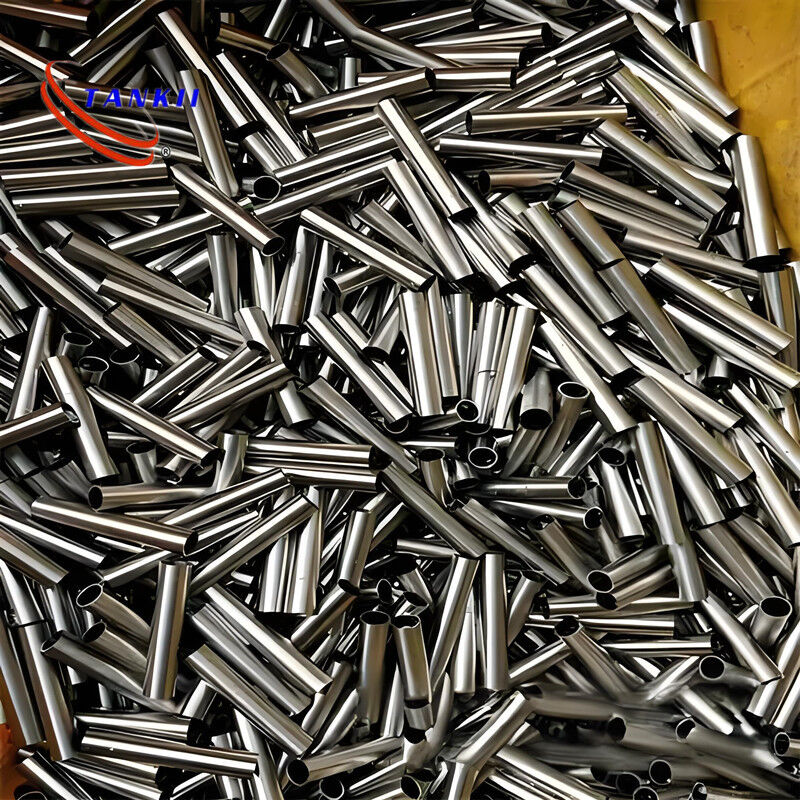

Precison alloy TK41152 Nife52/Nilo 52/Feni52 Capillary Tubes Alloy 52/ASTM F30 Nickel Iron Alloy Pipe for sealing fibreglass
TK41152 The iron-nickel constant expansion alloy is a series of constant expansion alloys that can be matched with soft glass and ceramics with different expansion coefficients in a given temperature range by adjusting the nickel content. Its expansion coefficient and Curie point increase with the increase in nickel content. The combination gold is a sealing structure material widely used in the electric vacuum industry.
The alloy is mainly used for sealing with soft lead glass and small electronic tube leads. Zh
In the application, the selected sealing material should match the expansion coefficient of the alloy. The grain size should be controlled during heat treatment to ensure that the material has good deep-drawing properties. When using forged and rolled materials, the air tightness of the materials should be strictly checked.
Normal composition%
| Ni | 50.5~52.5 | Fe | Bal. | Co | - | Si | ≤0.3 |
| Mo | - | Cu | - | Cr | - | Mn | ≤0.8 |
| C | ≤0.05 | P | ≤0.02 | S | ≤0.02 |
Typical Physical properties
| Density (g/cm3) | 8.25 |
| Electrical resistivity at 20ºC(ohm.mm2/m) | 0.43 |
| Temperature factor of resistivity(20ºC~200ºC)X10-6/ºC | 9.8~11 |
| Thermal conductivity, λ/ W/(m*ºC) | 16.7 |
| Curie point Tc/ ºC | 520 |
| Elastic Modulus, E/ Gpa | 144 |
Coefficient of expansion
| θ/ºC | α1/10-6ºC-1 | θ/ºC | α1/10-6ºC-1 |
| 20~-60 | 20~100 | 10.3 | |
| 20~-40 | 20~200 | 10.4 | |
| 20~-20 | 20~300 | 10.2 | |
| 20~-0 | 20~350 | 10.3 | |
| 20~50 | 20~400 | 10.3 | |
| 20~100 | 20~450 | 10.3 | |
| 20~150 | 20~500 | 10.3 | |
| 20~200 | 20~600 | 10.8 |
| Tensile Strength | Elongation |
| Mpa | % |
| 641 | 14 |
| 689 | 9 |
| 731 | 8 |
| The heat treatment process | |
| Annealing for stress relief | Heated to 530~550ºC and hold 1~2 h. Cold down |
| annealing | In order to eliminate hardening, which be bring out in cold-rolled, cold drawing process. Annealing needs heated to 830~880ºC in vacuum,hold 30 min. |
| The stabilization process |
In protective media and heated to 830 ºC, hold 20min. ~ 1h, quench
Due to the stress generated by quenching, heated to 315ºC,hold 1~4h.
|
| Precautions |
Can not be hardened by heat treatment,
Surface treatment can be sandblasting, polishing or pickling. Alloy can be used 25% hydrochloric acid pickling solution at 70 ºC to clear oxidized surface
|
