제품 상세정보
원래 장소: 중국
브랜드 이름: Tankii
인증: ISO9001
모델 번호: K타입)
지불과 운송 용어
최소 주문 수량: 10kg
가격: 20-30USD/Kg
포장 세부 사항: csae
배달 시간: 10-30 일
지불 조건: L/C,D/A,D/P,T/T,웨스턴 유니온
공급 능력: 5000kg/월
디아: |
0.3/0.5/0.8/1.0/1.2/1.6/2.0/2.5/3.2mmm |
표면: |
밝음/산화됨 |
등급: |
I/II/III |
인장강도: |
390 |
목: |
나선 열전대 와이어(K 유형) |
디아: |
0.3/0.5/0.8/1.0/1.2/1.6/2.0/2.5/3.2mmm |
표면: |
밝음/산화됨 |
등급: |
I/II/III |
인장강도: |
390 |
목: |
나선 열전대 와이어(K 유형) |

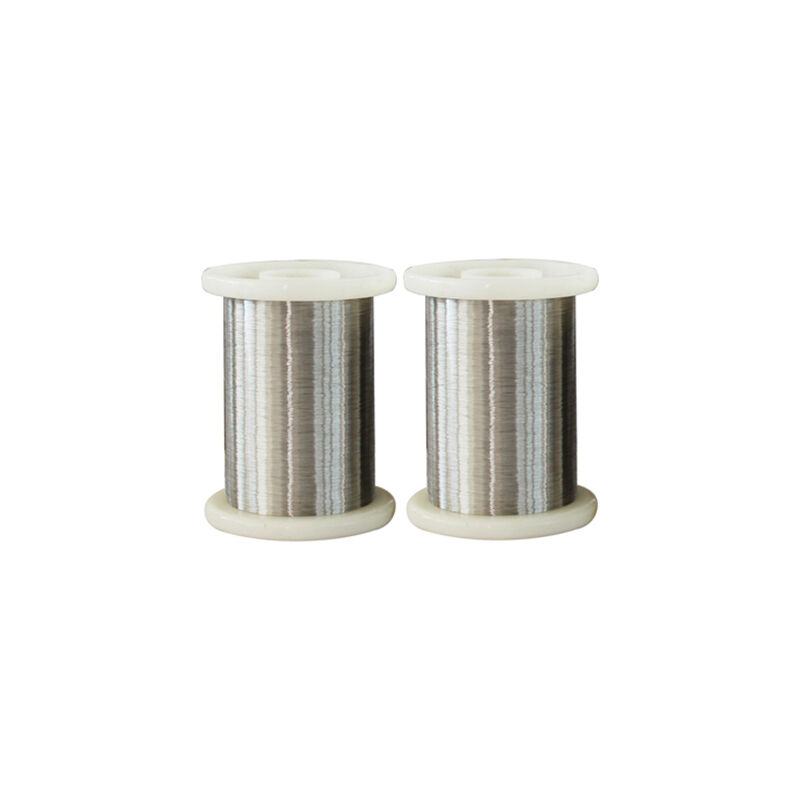

Chromel Alumel Bare wire Thermocouple Wire (K Type)
NiCr-Ni/NiAl (Type K) thermocouple wire finds the widest use in all basemetal thermocouple, at temperature above 500 °C.
Type K thermocouple wire has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:
(1) Alternatively oxidizing and reducing atmosphere.
(2) Atmosphere with sulphur gases.
(3) Long time in vacuum.
(4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.
NiCr-NiAl thermocouple wire can be produced as per the chemical composition requirement of the customers.
Insulation material: PVC, PTFE, FB or as per the customer's requirement.
Detailed Parameter
Chemical Composition |
|||||
Conductor Name |
Polarity |
Code |
Nominal Chemical Composition /% |
||
Ni |
Cr |
Si |
|||
Ni-Cr |
Positive |
KP |
90 |
10 |
-- |
Ni- Si |
Negative |
KN |
97 |
-- |
3 |
|
Working Temperature
|
||
Diameter/mm |
Long time Working temperature /ºC |
Short period Working temperature /ºC |
0.3 |
700 |
800 |
0.5 |
800 |
900 |
0.8,1.0 |
900 |
1000 |
1.2,1.6 |
1000 |
1100 |
2.0,2.5 |
1100 |
1200 |
|
3.2 |
1200 |
1300 |
