제품 상세정보
원래 장소: 중국
브랜드 이름: Tankii
인증: ISO9001
모델 번호: 니켈 200 / Ni201
지불과 운송 용어
최소 주문 수량: 1000m
가격: 8-10USD/Kg
포장 세부 사항: 사례
배달 시간: 10-30 일
지불 조건: L/C,D/A,D/P,T/T,웨스턴 유니온
공급 능력: 50000m/month
청정: |
99.6% 니켈 |
이름: |
순수 니켈 파이프 |
OD: |
0.5-40mm |
벽 두께: |
0.02-5.0mm |
길이: |
3000mm |
재료: |
니켈 |
제품 유형: |
철사 |
청정: |
99.6% 니켈 |
이름: |
순수 니켈 파이프 |
OD: |
0.5-40mm |
벽 두께: |
0.02-5.0mm |
길이: |
3000mm |
재료: |
니켈 |
제품 유형: |
철사 |

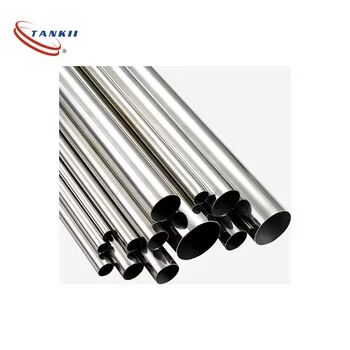

Pure Nickel 99.6% Tube Nickel 200 / Ni201 Small Size Tube/Pipe
Nickel 200 and nickel 201 wire. In the form of wire, rod, bar, tube. Tankii alloy is the best alloy producer.
General Description
Commercially wrought Nickel 200 ( UNS N02200) , a grade of pure nickel contains 99.2% nickel, has excellent mechanical properties, magnetic properties, high thermal, electrical conductivity and excellent resistance to many corrosive environment. Nickel 200 is useful in any environment below 600ºF(315ºC). It has highly resistance to neutral and alkaline salt solutions. Nickel 200 also has low corrosion rates in neutral and distilled water.
The applications of pure nickel includes food processing equipment, magnetostrictive devices and rechargeable batteries, computers, cellular Phone, power tools, camcorders and so on.
Chemical Composition
| Alloy | Ni% | Mn% | Fe% | Si% | Cu% | C% | S% |
| Nickel 200 | Min 99.2 | Max 0.35 | Max 0.4 | Max 0.35 | Max 0.25 | Max 0.15 | Max 0.01 |
Physical Data
| Density | 8.89g/cm3 |
| Specific Heat | 0.109(456 J/kg.ºC) |
| Electrical Resistivity | 0.096×10-6ohm.m |
| Melting Point | 1435-1446ºC |
| Thermal Conductivity | 70.2 W/m-K |
| Mean Coeff Thermal Expansion | 13.3×10-6m/m.ºC |
Typical Mechanical Properties
| Mechanical Properties | Nickel 200 |
| Tensile Strength | 462 Mpa |
| Yield Strength | 148 Mpa |
| Elongation | 47% |
Our Production Standard
| Bar | Forging | Pipe | Sheet/Strip | Wire | |
| ASTM | ASTM B160 | ASTM B564 | ASTM B161/B163/B725/B751 | AMS B162 | ASTM B166 |
| Main Composition % | |||
| Ni | Mn | Si | |
| NiMn2 | Bal. | 1.5-2.5 | 0.3 |
| NiMn3 | Bal. | 2.3-3.3 | 0.3 |
| NiMn5 | Bal. | 4.6-5.4 | 0.5 |
| Code No. | Dia. mm | TS. N/mm2 | Elongation % |
| NiMn2 | ≤6.0 | ≥350 | ≥20 |
| NiMn3 | ≤6.0 | ≥350 | ≥20 |
| NiMn5 | ≤6.0 | ≥350 | ≥20 |
