제품 상세정보
원래 장소: 중국
브랜드 이름: Tankii
인증: ISO9001
모델 번호: Ni80Cr20
지불과 운송 용어
최소 주문 수량: 10kg
가격: 20-30USD/KG
포장 세부 사항: 사례
배달 시간: 15-20일
지불 조건: L/C,D/A,D/P,T/T,웨스턴 유니온
공급 능력: 5000kg/월
단열의 색: |
빨강, 녹색, 노랑, 검정, 파랑, 자연 등 |
운송 패키지: |
합판 팔레트 또는 나무 케이스에 포장하세요. |
기원: |
상하이 |
생산능력: |
1톤/월 |
모델 번호.: |
Ni80Cr20 |
단열의 색: |
빨강, 녹색, 노랑, 검정, 파랑, 자연 등 |
운송 패키지: |
합판 팔레트 또는 나무 케이스에 포장하세요. |
기원: |
상하이 |
생산능력: |
1톤/월 |
모델 번호.: |
Ni80Cr20 |

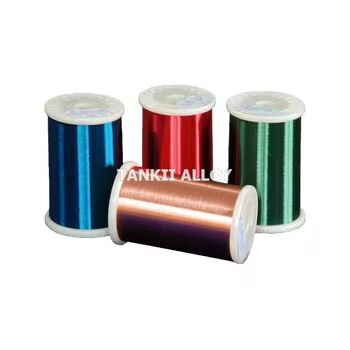

0.05mm Enamelled Nichrome Ni80Cr20 Wire
Common Name:(enameled Resistor wire,enameled heating wire,enameled wound wire)
Product Description
These enameled resistance wires have been broadly used for standard resistors, automobile parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.
Type of bare alloy wire
| Copper-nickel alloy wire, | Constantan Wire,CuNi1~CuNi44 | |
| Ni-Cr Alloy wire | NiCr35/20,NiCr70/30,NiCr60/15,NiCr80/20,NiCr90/10,NiCr AA,Karma. | |
| Fe-Cr-Al Alloy wire | Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5, Cr21Al6Nb,Cr27Al7Mo2, |
|
| Cu-Ni-Mn Alloy wire | CuMn12Ni2,CuMn12Ni4,Manganin | |
| Any copper alloy and nickel alloy is available | ||
Color of enameled insulation:
| Red,Green,Yellow,Black,Blue,Nature etc. |
Type of insulation
| Insulation-enamelled Name | Thermal LevelºC (working time 2000h) |
Code Name | GB Code | ANSI. TYPE |
| Polyurethane enamelled wire | 130 | UEW | QA | MW75C |
| Polyester enamelled wire | 155 | PEW | QZ | MW5C |
| Polyester-imide enamelled wire | 180 | EIW | QZY | MW30C |
| Polyester-imide and polyamide-imide double coated enameled wire | 200 | EIWH (DFWF) |
QZY/XY | MW35C |
| Polyamide-imide enamelled wire | 220 | AIW | QXY | MW81C |
Style of supply
| Alloys Name | Type | Dimension | ||
| Enameled-W | Wire | D=0.018mm~3mm | ||
| Enameled-R | Ribbon | W=0.4~24 | T=0.01~0.2mm | |
Dimension of insulation
| D mm |
Min thickness of insulation | Max OD of Enameled | ||
| I | II | I | II | |
| 0.02 | 0.005 | 0.009 | 0.09 | 0.036 |
| 0.022 | 0.005 | 0.019 | 0.032 | 0.038 |
| 0.025 | 0.006 | 0.010 | 0.036 | 0.042 |
| 0.028 | 0.006 | 0.010 | 0.039 | 0.045 |
| 0.030 | 0.006 | 0.011 | 0.042 | 0.048 |
| 0.032 | 0.006 | 0.011 | 0.044 | 0.050 |
| 0.036 | 0.007 | 0.012 | 0.049 | 0.055 |
| 0.040 | 0.007 | 0.012 | 0.053 | 0.060 |
| 0.045 | 0.008 | 0.013 | 0.059 | 0.066 |
| 0.050 | 0.008 | 0.014 | 0.064 | 0.072 |
| 0.056 | 0.009 | 0.015 | 0.071 | 0.079 |
| 0.060 | 0.009 | 0.016 | 0.076 | 0.084 |
| 0.063 | 0.009 | 0.016 | 0.080 | 0.088 |
| 0.071 | 0.010 | 0.017 | 0.089 | 0.097 |
| 0.080 | 0.011 | 0.018 | 0.099 | 0.108 |
| 0.090 | 0.012 | 0.019 | 0.111 | 0.120 |
| 0.100 | 0.012 | 0.021 | 0.122 | 0.132 |
| 0.112 | 0.012 | 0.021 | 0.135 | 0.146 |
| 0.125 | 0.014 | 0.023 | 0.150 | 0.161 |
| 0.140 | 0.015 | 0.024 | 0.166 | 0.179 |
| 0.150 | 0.016 | 0.025 | 0.177 | 0.191 |
| 0.160 | 0.017 | 0.028 | 0.188 | 0.202 |
| 0.180 | 0.018 | 0.028 | 0.210 | 0.225 |
| 0.200 | 0.019 | 0.030 | 0.231 | 0.248 |
| 0.224 | 0.021 | 0.032 | 0.258 | 0.275 |
| 0.250 | 0.022 | 0.034 | 0.285 | 0.304 |
| 0.280 | 0.024 | 0.036 | 0.318 | 0.338 |
| 0.300 | 0.025 | 0.037 | 0.339 | 0.360 |
| 0.315 | 0.026 | 0.038 | 0.356 | 0.376 |
| 0.355 | 0.027 | 0.041 | 0.398 | 0.420 |
| 0.400 | 0.028 | 0.043 | 0.445 | 0.468 |
| 0.450 | 0.030 | 0.048 | 0.498 | 0.524 |
| 0.500 | 0.031 | 0.049 | 0.551 | 0.578 |
| 0.560 | 0.034 | 0.052 | 0.615 | 0.643 |
| 0.600 | 0.035 | 0.054 | 0.657 | 0.686 |
| 0.630 | 0.038 | 0.056 | 0.689 | 0.718 |
| 0.710 | 0.038 | 0.059 | 0.773 | 0.805 |
| 0.00 | 0.041 | 0.062 | 0.869 | 0.902 |
| 0.900 | 0.043 | 0.066 | 0.973 | 1.010 |
| 1.000 | 0.048 | 0.070 | 1.079 | 1.117 |
| 1.120 | 0.049 | 0.074 | 1.205 | 1.247 |
| 1.250 | 0.053 | 0.080 | 1.343 | 1.387 |
| 1.400 | 0.058 | 0.085 | 1.499 | 1.548 |
| 1.500 | 0.059 | 0.090 | 1.605 | 1.654 |
