제품 상세정보
원래 장소: 중국
브랜드 이름: Tankii
인증: ISO9001
모델 번호: CuNi2
지불과 운송 용어
최소 주문 수량: 10kg
가격: 20-50USD/Kg
포장 세부 사항: 사례
배달 시간: 10-20 일
지불 조건: Western Union, T/T, D/P, D/A, L/C.
공급 능력: 5000kg/월
등급: |
CuNi2 합금선 |
주요 사용: |
가열 전선 |
견본: |
작은 샘플을 사용할 수 있습니다 |
유형: |
구리선 |
애플리케이션: |
워터 히터, 에어컨 또는 냉장고, 오일 콜러 파이프, 물 파이프 |
등급: |
CuNi2 합금선 |
주요 사용: |
가열 전선 |
견본: |
작은 샘플을 사용할 수 있습니다 |
유형: |
구리선 |
애플리케이션: |
워터 히터, 에어컨 또는 냉장고, 오일 콜러 파이프, 물 파이프 |

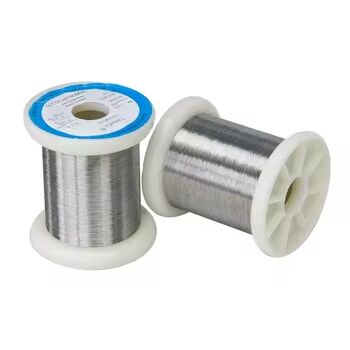

Dia 0.005mm 0.045mm CuNi2 Alloy Wire , Copper Nickel Rod / Bar for Heated Car Seat
Product Description
CuNi2 alloy wire: low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.ng cable.
Chemical Content, %
| Ni | Mn | Fe | Si | Cu | Other | ROHS Directive | |||
| Cd | Pb | Hg | Cr | ||||||
| 2 | - | - | - | Bal | - | ND | ND | ND | ND |
Mechanical Properties
| Max Continuous Service Temp | 200ºC |
| Resisivity at 20ºC | 0.05±10%ohm mm2/m |
| Density | 8.9 g/cm3 |
| Thermal Conductivity | 100(max) |
| Melting Point | 1280ºC |
| Tensile Strength,N/mm2 Annealed,Soft | 140~310 Mpa |
| Tensile Strength,N/mm2 Cold Rolled | 280~620 Mpa |
| Elongation(anneal) | 25%(min) |
| Elongation(cold rolled) | 2%(min) |
| EMF vs Cu, μV/ºC (0~100ºC) | -8 |
| Micrographic Structure | austenite |
| Magnetic Property | Non |
CuNi2 Gradenames:
Alloy 30, CuNi2, 30 Alloy, HAl-30 Alloy 230, Cuprothal 30
Resistance Alloy 30-CuNi2 Size/Temper Capabilities
1, Condition: Bright, Annealed, Soft
2, Wire/Ribbon diameter 0.02mm-1.0mm packing in spool, big than 1.50mm packing in coil
3, Rod, Bar diameter 1mm-30mm
4, Strip: Thickness 0.01mm-7mm, Width 1mm-280mm
5, Enameled condition is available
Resistance Alloy Series
CuNi alloy wireis typically used in heating cables, fuses, resistors and various types of controllers.
As a big manufacturer and exporter in China on the line of electric resistance alloy, we can supply all kinds of electric resistance alloy wire and strips (resistance steel wire and strips weiding wire)
Chemical composition and main properties
| Chemical Composition and Main Property of Cu-Ni Low Resistance Alloy | ||||||||
| PropertiesGrade | CuNi1 | CuNi2 | CuNi6 | CuNi8 | CuMn3 | CuNi10 | ||
| Main Chemical Composition | Ni | 1 | 2 | 6 | 8 | _ | 10 | |
| Mn | _ | _ | _ | _ | 3 | _ | ||
| Cu | Bal | Bal | Bal | Bal | Bal | Bal | ||
| Max Continuous Service Temperature(º C) | 200 | 200 | 200 | 250 | 200 | 250 | ||
| Resisivity at 2º C (Ω mm2/m) | 0.03 | 0.05 | 0.1 | 0.12 | 0.12 | 0.15 | ||
| Density(g/cm3) | 8.9 | 8.9 | 8.9 | 8.9 | 8.8 | 8.9 | ||
| Thermal Conductivity(α × 10-6º C) | < 100 | < 120 | < 60 | < 57 | < 38 | < 50 | ||
| Tensile Strength(Mpa) | ≥ 210 | ≥ 220 | ≥ 250 | ≥ 270 | ≥ 290 | ≥ 290 | ||
| EMF vs Cu(μ Vº C)(0~10º C) | -8 | -12 | -12 | -22 | _ | -25 | ||
| Approximate Melting Point(º C) | 1085 | 1090 | 1095 | 1097 | 1050 | 1100 | ||
| Micrographic Structure | austenite | austenite | austenite | austenite | austenite | austenite | ||
| Magnetic Property | non | non | non | non | non | non | ||
| PropertiesGrade | CuNi14 | CuNi19 | CuNi23 | CuNi30 | CuNi34 | CuNi44 | ||
| Main Chemical Composition | Ni | 14 | 19 | 23 | 30 | 34 | 44 | |
| Mn | 0.3 | 0.5 | 0.5 | 1 | 1 | 1 | ||
| Cu | Bal | Bal | Bal | Bal | Bal | Bal | ||
| Max Continuous Service Temperatureº C) | 300 | 300 | 300 | 350 | 350 | 400 | ||
| Resisivity at 2º C (Ω mm2/m) | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 | 0.49 | ||
| Density(g/cm3) | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | ||
| Thermal Conductivity(α × 10-6º C) | < 30 | < 25 | < 16 | < 10 | < 0 | < -6 | ||
| Tensile Strength(Mpa) | ≥ 310 | ≥ 340 | ≥ 350 | ≥ 400 | ≥ 400 | ≥ 420 | ||
| EMF vs Cu(μ Vº C)(0~10º C) | -28 | -32 | -34 | -37 | -39 | -43 | ||
| Approximate Melting Point(º C) | 1115 | 1135 | 1150 | 1170 | 1180 | 1280 | ||
| Micrographic Structure | austenite | austenite | austenite | austenite | austenite | austenite | ||
| Magnetic Property | non | non | non | non | non | non | ||
