제품 상세정보
원래 장소: 중국
브랜드 이름: Tankii
인증: ISO 9001
모델 번호: 분변 134
지불과 운송 용어
최소 주문 수량: 5kg
가격: Negotatioin
포장 세부 사항: 스풀, 코일, 나무 케이스
배달 시간: 5-25 일
지불 조건: T/T, Western Union
공급 능력: 20000kg/주
이름: |
분변 134 |
재료: |
대변 합금 |
크기: |
사용자 정의 |
애플리케이션: |
에칭 |
모크: |
20kg |
모양: |
조각 |
표면: |
밝은 |
이름: |
분변 134 |
재료: |
대변 합금 |
크기: |
사용자 정의 |
애플리케이션: |
에칭 |
모크: |
20kg |
모양: |
조각 |
표면: |
밝은 |

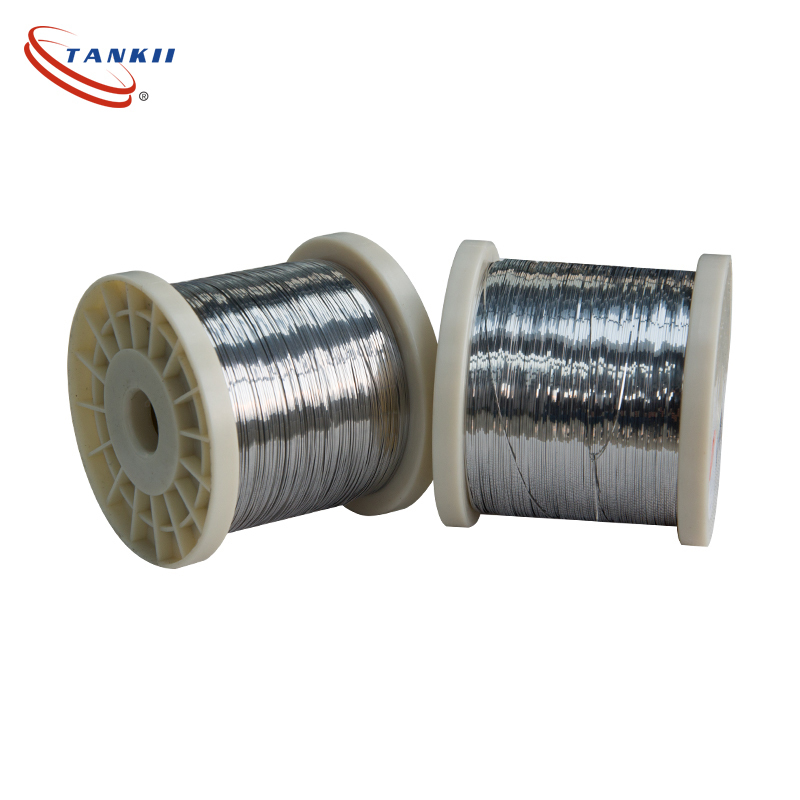

Fecral 13/4 Alloy 0cr13al4 Heating Resistance Ribbon / Flat Alloy Wire
FeCrAl alloy is made by a high-temperature, ferritic iron-chromium-aluminium alloy which can be used at temperatures up to 1350degrees. Typical applications for 0Cr21Al6Nb are as electrical heating elements in high-temperature furnaces in the heat treating, ceramics, glass, steel, and electronics industries.
Feature:
With long service life.Heating up fast.High thermal efficiency.Temperature uniformity. Can use vertically. When being used in the rated voltage,there is no volatile matter.It is an environmental protection electric heating wire. And an alternative to the costly nichrome wire.Can be customized according to customer requirements
FeCrAl alloys are characterized by excellent oxidation resistance and very good form stability resulting in long element life.
They are typically used in electrical heating elements in industrial furnaces and home appliances.
Fe-Cr-Al alloy with high resistivity and serviceability temperature than that for NiCr alloy and also has lower pr
| Grade | 1Cr13Al4 | TK1 | 0Cr25Al5 | 0Cr20Al6Re | 0Cr23Al5 | 0Cr19Al3 | 0Cr21Al6Nb | 0Cr27Al7Mo2 | |
|
Nominal composition % |
Cr | 12.0-15.0 | 22.0-26.0 | 23.0-26.0 | 19.0-22.0 | 22.5-24.5 | 18.0-21.0 | 21.0-23.0 | 26.5-27.8 |
| Al | 4.0-6.0 | 5.0-7.0 | 4.5-6.5 | 5.0-7.0 | 4.2-5.0 | 3.0-4.2 | 5.0-7.0 | 6.0-7.0 | |
| Re | opportune | 0.04-1.0 | opportune | opportune | opportune | opportune | opportune | opportune | |
| Fe | Bal. | Bal. | Bal. | Bal. | Bal. | Bal. | Bal. | ||
| Nb0.5 | Mo1.8-2.2 | ||||||||
| Resistivity 20ºC | 1.25 | 1.48 | 1.42 | 1.40 | 1.35 | 1.23 | 1.45 | 1.53 | |
| Density(g/cm³) | 7.4 | 7.1 | 7.1 | 7.16 | 7.25 | 7.35 | 7.1 | 7.1 | |
| Max continuous operating temperature(ºC) | 650 | 1400 | 1250 | 1250 | 1250 | 1100 | 1350 | 1400 | |
Grade: CrAl 20/5, Cr25Al5, Cr21Al6Nb, TK1
Max working temperature: 1250~1400°c
Resistivity: 1.35~1.5 mm2 Ω/m
Diameter 6mm~14mm usually
SHANGHAI TANKII ALLOY MATERIAL CO., LTD
MOST PROFESSIONAL ALCHROME AND FECRAL ALLOY PRODUCER IN CHINA
