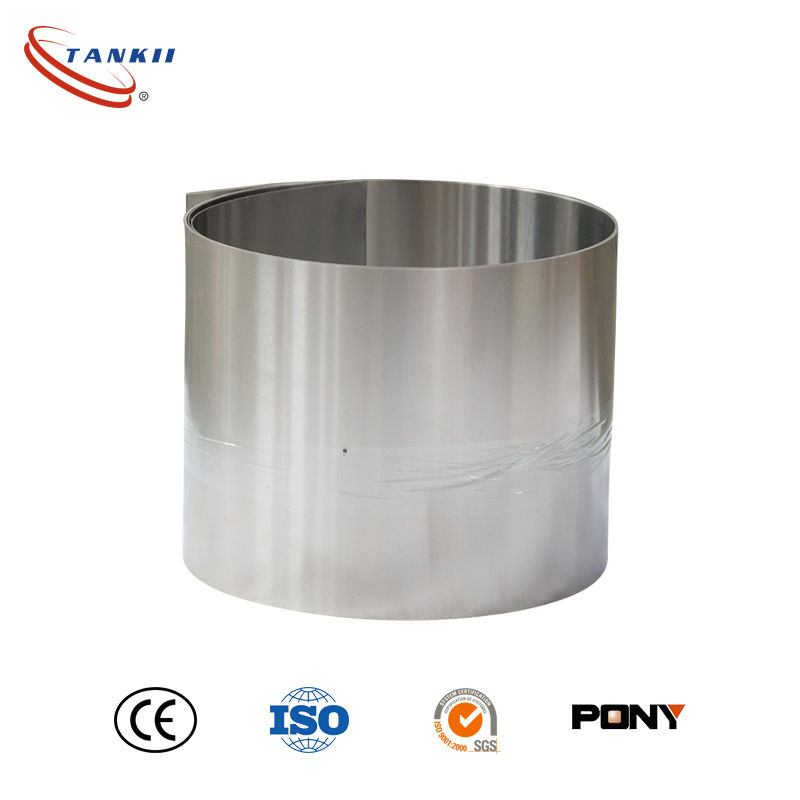

Ni80Cr20 Nichrome Strip 1mm-300mm Width 1200℃ Max Temp

Name: Ni80Cr20 Nichrome Strip 1mm-300mm Width 1200℃ Max Temp
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Ni80Cr20
Price: 35.00 USD
Availability: InStock

제품 상세정보

원래 장소: 중국

브랜드 이름: Tankii

인증: ISO9001

모델 번호: Ni80Cr20

지불과 운송 용어

최소 주문 수량: 100kg

가격: Nigotiated

포장 세부 사항: 나무 상자 또는 상자 포장

배달 시간: 20 일

지불 조건: T/T, Western Union

공급 능력: 연간 2000Tons

최상의 가격을 얻으세요

지금 연락하세요

사양

설명

사양

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Ni80Cr20 Nichrome strip high temperature, Nichrome strip 1mm width heat resistant, Copper nickel alloy strip 1200℃ max


재료:	Ni80Cr20	표면:	밝고 기름이 없습니다
최대 작업 온도:	1200 ℃	녹는 점:	1400C
밀도:	8.4g/cm3	사양:	w (1mm-300mm)*t (0.01mm ~ 7mm)
제품 유형:	조각	HS 코드:	7506200000

재료:	Ni80Cr20
표면:	밝고 기름이 없습니다
최대 작업 온도:	1200 ℃
녹는 점:	1400C
밀도:	8.4g/cm3
사양:	w (1mm-300mm)*t (0.01mm ~ 7mm)
제품 유형:	조각
HS 코드:	7506200000

설명

Ni80Cr20 Nichrome Strip 1mm-300mm Width 1200℃ Max Temp

Nickel Chromium Alloy Ni80Cr20 Strip Nichrome Cr20Ni80 Tape

Product Specifications

Attribute	Value
Material	Ni80Cr20
Surface	Bright, no oil
Max working temperature	1200℃
Melting Point	1400℃
Density	8.4g/cm³
Specification	W(1mm-300mm)*T(0.01mm~7mm)
Product Type	Strip
HS Code	7506200000

Product Description

Nichrome Tape (Nickel Chromium Resistance Tape) is a high-performance alloy strip designed for demanding industrial applications.

Applications

Rocketry or pyrotechnic igniters
Electric matches and foam cutting
Heating elements and release mechanisms
Ceramics manufacturing
Laboratory equipment
Various industrial heating applications

Available in strip thickness from 0.01mm minimum to 7mm, with widths up to 450mm.

Material composition: 80% nickel, 20% chromium (Ni80Cr20).

Available in oxidized green color finish.

Complies with ASTM B267 and ASTM B344 standards.

Chemical Composition and Properties

Properties Grade	NiCr 80/20	NiCr 70/30	NiCr 60/15	NiCr 35/20	NiCr 30/20
Main Chemical Composition	Ni: Balance Cr: 20.0-23.0 Fe: ≤1.0	Ni: Balance Cr: 28.0-31.0 Fe: ≤1.0	Ni: 55.0-61.0 Cr: 15.0-18.0 Fe: Balance	Ni: 34.0-37.0 Cr: 18.0-21.0 Fe: Balance	Ni: 30.0-34.0 Cr: 18.0-21.0 Fe: Balance
Max Continuous Service Temperature (°C)	1200	1250	1150	1100	1100
Resistivity 20°C (Ωmm²/m)	1.09	1.18	1.12	1.04	1.04
Density (g/cm³)	8.4	8.1	8.2	7.9	7.9
Thermal Conductivity (KJ/m·h·°C)	60.3	45.2	45.2	43.8	43.8
Coefficient of Thermal Expansion (α×10⁻⁶/°C)	18	17	17	19	19
Melting Point (°C)	1400	1380	1390	1390	1390
Elongation (%)	>20	>20	>20	>20	>20
Micrographic Structure	Austenite	Austenite	Austenite	Austenite	Austenite
Magnetic Property	Nonmagnetic	Nonmagnetic	Nonmagnetic	Weak magnetic	Weak magnetic
