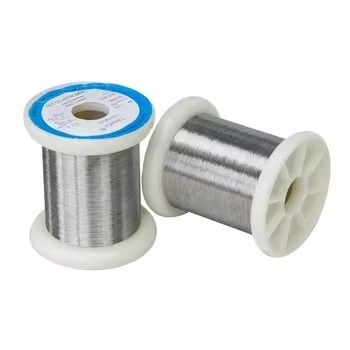

Ni80Cr20 Nichrome Wire 0.02mm 1200℃ Max Temp Resistor Heater

Name: Ni80Cr20 Nichrome Wire 0.02mm 1200℃ Max Temp Resistor Heater
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Ni80Cr20
Price: 35.00 USD
Availability: InStock

제품 상세정보

브랜드 이름: Tankii

인증: ISO9001

모델 번호: Ni80Cr20

지불과 운송 용어

최소 주문 수량: 10kg

가격: Negotiated

포장 세부 사항: 나무 상자 또는 상자 포장

배달 시간: 20 일

지불 조건: T/T, Western Union

공급 능력: 연간 2000Tons

최상의 가격을 얻으세요

지금 연락하세요

사양

설명

사양

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Ni80Cr20 nichrome wire resistor heater, 0.02mm nichrome wire high temp, NiCr alloy wire 1200℃ max


이름:	Cr20Ni80	응용 프로그램 범위:	저항, 히터
연장:	30%	최대 작업 온도:	1200 ℃
녹는 점:	1400C	전기 저항성:	1.09 Ohm mm2/m
밀도:	8.3g/cm3	HS 코드:	7505220000

이름:	Cr20Ni80
응용 프로그램 범위:	저항, 히터
연장:	30%
최대 작업 온도:	1200 ℃
녹는 점:	1400C
전기 저항성:	1.09 Ohm mm2/m
밀도:	8.3g/cm3
HS 코드:	7505220000

설명

Ni80Cr20 Nichrome Wire 0.02mm 1200℃ Max Temp Resistor Heater

High Quality Nickel Chromium Alloy 0.02mm Ni80Cr20 Wire Nichrome Wire

Product Specifications

Name	Cr20Ni80
Range of Application	Resistor, Heater
Elongation	30%
Max Working Temperature	1200℃
Melting Point	1400℃
Electrical Resistivity	1.09 ohm mm²/m
Density	8.3 g/cm³
HS Code	7505220000

Product Description

Nichrome Rod/Nichrome Wire (NiCr 80/20) with chemical composition of Nickel 80% and Chrome 20%.

Available Forms & Dimensions

Condition: Bright/Acid white/Oxidized Color
Nichrome Round Wire: Diameter 0.018mm~10mm
Nichrome Ribbon: Width 5~0.5mm, thickness 0.01-2mm
Nichrome Strip: Width 450mm~1mm, thickness 0.001m~7mm
Diameter: 1.5mm-8mm packing in coil, 8~60mm in rod

Available Grades

Ni80Cr20, Ni70/30, Ni60Cr15, Ni60Cr23, Ni35Cr20Fe, Ni30Cr20, Ni80, Ni70, Ni60, Ni40

Key Characteristics

Excellent plasticity when cold
Stable performance with anti-oxidation properties
Corrosion resistance and high temperature stability
Excellent coil-forming ability
Uniform and beautiful surface condition without spots

Applications

Resistance heating elements
Material in metallurgy
Household appliances
Mechanical manufacturing
Various industrial applications

Production Standards

ASTM B603, DIN 17470, JIS C2520, GB/T1234

Our Advantages

High quality materials, short delivery time, and small minimum order quantities.

Chemical Composition and Properties Comparison

Properties Grade	NiCr 80/20	NiCr 70/30	NiCr 60/15	NiCr 35/20	NiCr 30/20
Main Chemical Composition Ni	Balance	Balance	55.0-61.0	34.0-37.0	30.0-34.0
Cr	20.0-23.0	28.0-31.0	15.0-18.0	18.0-21.0	18.0-21.0
Fe	≤ 1.0	≤ 1.0	Balance	Balance	Balance
Max Continuous Service Temperature(℃)	1200	1250	1150	1100	1100
Resistivity 20℃ (Ω mm²/m)	1.09	1.18	1.12	1.04	1.04
Density (g/cm³)	8.4	8.1	8.2	7.9	7.9
Thermal Conductivity (KJ/m·h·℃)	60.3	45.2	45.2	43.8	43.8
Coefficient of Thermal Expansion (α × 10⁻⁶/℃)	18	17	17	19	19
Melting Point (℃)	1400	1380	1390	1390	1390
Elongation (%)	> 20	> 20	> 20	> 20	> 20
Micrographic Structure	austenite	austenite	austenite	austenite	austenite
Magnetic Property	nonmagnetic	nonmagnetic	nonmagnetic	Weak magnetic	Weak magnetic
