제품 상세정보
원래 장소: 중국 본토
브랜드 이름: TANKII
인증: ISO9001
모델 번호: 0Cr25Al5
지불과 운송 용어
최소 주문 수량: 10Kg
가격: 협상 가능
포장 세부 사항: 코일에서
배달 시간: 지불을 얻는 것 뒤에 7~20 일
지불 조건: L/C (신용장), 전신환, 웨스턴 유니온
공급 능력: 1000 톤/년
항목: |
철 크롬 알루미늄 합금 -페크럴 가열 저항선 0.05~8mm |
Dia: |
0.05~8mm |
패키지: |
실패, 스풀, 나무상자 |
리딩 타임: |
지불을 얻기 후에 7~20 dryas |
항목: |
철 크롬 알루미늄 합금 -페크럴 가열 저항선 0.05~8mm |
Dia: |
0.05~8mm |
패키지: |
실패, 스풀, 나무상자 |
리딩 타임: |
지불을 얻기 후에 7~20 dryas |

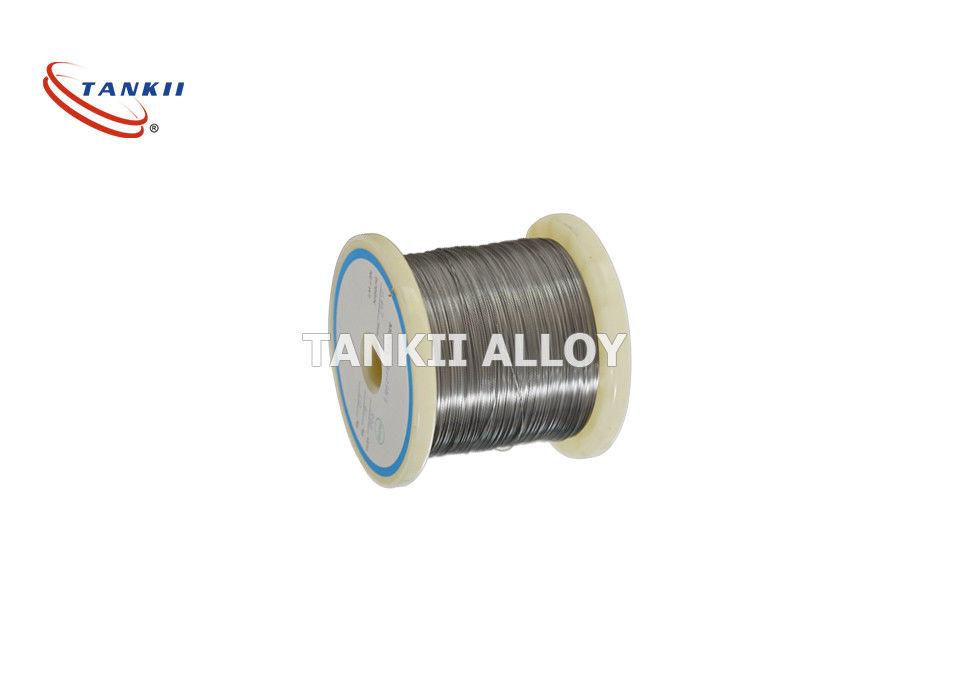

Iron Chromium Aluminum Alloy -FeCrAl Heating Resistance Wire 0.05~8mm
Ferritic alloy, mainly contain iron, chromium, aluminum, design for working environment more than 1200℃
-0Cr25Al5 high temperature resistance up to 1250℃,mainly using for appliance, with advantage of high resistivity and good oxidation resistance.
Uses: toasters and hair dryers, fan heaters, ceramic glass top heaters in ranges, boiling (hot) plates, suspended coil and straight wire elements for radiators, convection heaters, as porcupine elements for hot air guns, radiators,
1. Description
FECRAL Has been used extensively as heating elements in industrial furnaces and electrical kilns.
FECRAL Has less hot strength than Tophet alloys but much higher melting point.
Shanghai TANKII ALLOY MATERIAL Co., Ltd.
FECRAL AND ALCHROME ALLOY PRODUCER IN China, MOST PROFESSIONAL IN THE WORLD
2.Specification
1).Locomotive resistance strip:
Thickness:0.6mm-1.5mm
Width:60mm-90mm
2).Electric ceramic cooktop resistance strip:
Thickness:0.04mm-1.0mm
Width:5mm-12mm
Thickness&Width:(0.04mm-1.0mm)×12mm(above)
3).Low resistance ribbon:
Thickness&Width:(0.2mm-1.5mm)*5mm
4).Industrial furnace ribbon:
Thickness:1.5mm-3.0mm
Width:10mm-30mm
5).Wire: Diameter:0.1mm-8mm
FECRAL HIGH RESISTANCE WIRES 0CR25AL5 WIRE USED FOR Heating Fans
3. Details of tankii products
| Chemical Composition and Main Property of Fe-Cr-Al Resistance Alloy |
||||||||
| Properties Grade |
1Cr13Al4 |
0Cr25Al5 |
0Cr21Al6 |
0Cr23Al5 |
0Cr21Al4 |
0Cr21Al6Nb |
0Cr27Al7Mo2 |
|
| Main Chemical Composition (%) |
Cr |
12.0-15.0 |
23.0-26.0 |
19.0-22.0 |
22.5-24.5 |
18.0-21.0 |
21.0-23.0 |
26.5-27.8 |
| Al |
4.0-6.0 |
4.5-6.5 |
5.0-7.0 |
4.2-5.0 |
3.0-4.2 |
5.0-7.0 |
6.0-7.0 |
|
| Re |
opportune |
opportune |
opportune |
opportune |
opportune |
opportune |
opportune |
|
| Fe |
Bal. |
Bal. |
Bal. |
Bal. |
Bal. |
Bal. |
Bal. |
|
| Nb0.5 |
Mo1.8-2.2 |
|||||||
| Max Continuous Service Temperature(oC) |
950 |
1250 |
1250 |
1250 |
1100 |
1350 |
1400 |
|
| Resisivity 20oC (Ωmm2/m) |
1.25 ±0.08 |
1.42 ±0.06 |
1.42 ±0.07 |
1.35 ±0.07 |
1.23 ±0.07 |
1.45 ±0.07 |
1.53 ±0.07 |
|
| Density(g/cm3) |
7.4 |
7.1 |
7.16 |
7.25 |
7.35 |
7.1 |
7.1 |
|
| Thermal Conductivity |
52.7 |
46.1 |
63.2 |
60.2 |
46.9 |
46.1 |
45.2 |
|
| (KJ/m@h@oC) |
||||||||
| Coefficient of Thermal Expansion(α×10-6/oC) |
15.4 |
16 |
14.7 |
15 |
13.5 |
16 |
16 |
|
| Approximate Melting Point( oC) |
1450 |
1500 |
1500 |
1500 |
1500 |
1510 |
1520 |
|
| Tensile Strength(N/mm2) |
580-680 |
630-780 |
630-780 |
630-780 |
600-700 |
650-800 |
680-830 |
|
| Elongation(%) |
>16 |
>12 |
>12 |
>12 |
>12 |
>12 |
>10 |
|
| Section Variation |
65-75 |
60-75 |
65-75 |
65-75 |
65-75 |
65-75 |
65-75 |
|
| Shrink Rate (%) |
||||||||
| Repeatedly Bend Frequency(F/R) |
>5 |
>5 |
>5 |
>5 |
>5 |
>5 |
>5 |
|
| Hardness (H.B.) |
200-260 |
200-260 |
200-260 |
200-260 |
200-260 |
200-260 |
200-260 |
|
| Continuous Service Time |
no |
≥80/1300 |
≥80/1300 |
≥80/1300 |
≥80/1250 |
≥50/1350 |
≥50/1350 |
|
| Micrographic Structure |
Ferrite |
Ferrite |
Ferrite |
Ferrite |
Ferrite |
Ferrite |
Ferrite |
|
| Magnetic Property |
Magnetic |
Magnetic |
Magnetic |
Magnetic |
Magnetic |
Magnetic |
Magnetic | |
Typical application areas of FeCrAl wires
Pre-heating of aluminium
Homogenising of aluminium
Heat treatment in the metallurgical industry
Drying of ore concentrates
Drying of materials in the wood processing industry
Roasting and drying in the food industry
Baking in large bakery ovens
Drying of chemicals
Drying and stoving of paints (stoving furnaces)
Please call me at +86-18017475212 or email to me for more information on FeCrAl products.
