제품 상세정보
원래 장소: 상하이
브랜드 이름: TANKII
인증: ROHS,ISO9001
모델 번호: CuNi44
지불과 운송 용어
최소 주문 수량: 20kg
가격: usd+15~30+kg
포장 세부 사항: 스풀, 카톤, 팔레트
배달 시간: 8-20 일
지불 조건: L/C (신용장), 전신환, 웨스턴 유니온
공급 능력: 200+TON+MONTH
재료: |
구리 니켈 |
형태: |
라운드 |
사이즈: |
0.01--10 밀리미터 |
장력 Strength(N/mm2): |
>420 |
재료: |
구리 니켈 |
형태: |
라운드 |
사이즈: |
0.01--10 밀리미터 |
장력 Strength(N/mm2): |
>420 |
Cuprothal 294/Alloy 294/MWS-294 copper nickel constantan wire CuNi44
Copper nickel resistance heating wire, which has low electric resisitance, good heat-resistant and corrosion-resistant, easy to be processed and lead welded. It is used to make the key components in the thermal overload relay, low resistance thermal circuit breaker, and the electrical appliances. It is also an important material for electrical heating cable. It's similar as s type cupronickel.
The more composition of Nickel,the more silver white the surface to be.
Size dimension range:
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm

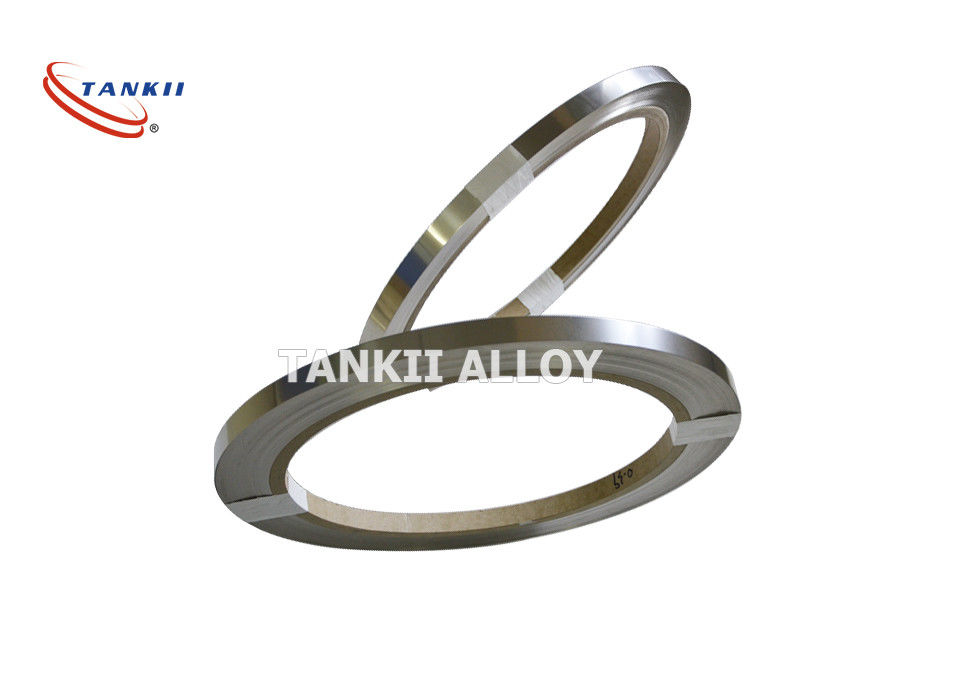

Strip: 0.05*5.0-5.0*250mm
Bar:10-50mm
Chemical Content(%) CuNi44
| Ni | Mn | Fe | Si | Cu | Other | ROHS Directive | |||
| Cd | Pb | Hg | Cr | ||||||
| 44 | 1.50% | 0.5 | - | Bal | - | ND | ND | ND | ND |
Mechanical Properties CuNi44
| Max Continuous Service Temp | 400 ºC |
| Resistivity at 20ºC | 0.49 ± 5% ohm*mm2/m |
| Density | 8.9 g/cm3 |
| Temperature Coefficient of Resistance | < -6 ×10-6/ºC |
| EMF VS Cu (0~100ºC) | -43 μV/ºC |
| Melting Point | 1280 ºC |
| Tensile Strength | Min 420 Mpa |
| Elongation | Min 25% |
| Micrographic Structure | Austenite |
| Magnetic Property |
Non. |
Copper nickel alloy series:
CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23,CuNi30, CuNi34, CuNi44.
Also named NC003, NC005, NC010, NC012, NC015, NC020, NC025, NC030, NC035, NC040, NC050.
