액체를 위한 380v 12 kw 니크레 2080 노 가열 요소

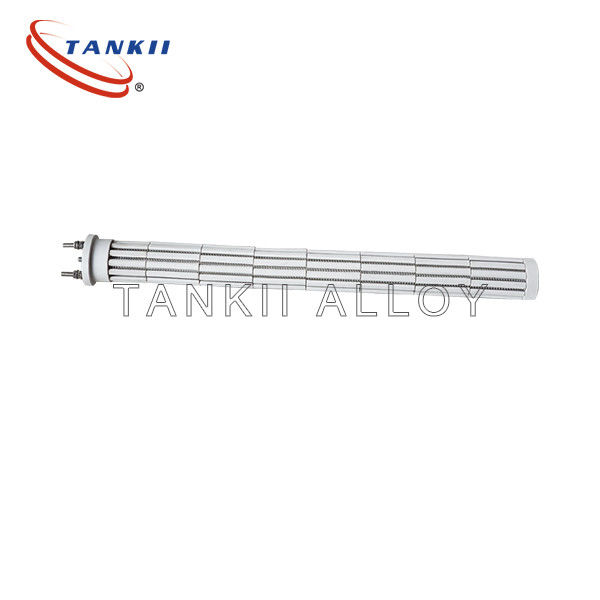

Product Description of Bayonet Heating Elements Review

Bayonet heating elements are typically constructed with inline configurations and have electrical plugin “bayonet” connector to facilitate quick installation and removal.Bayonet heating elements are used in industrial processing equipment such as:heat treating,glass production,ion nitriding,salt baths,non-ferrous metals liquefy,scientific applications,seal quench furnaces, hardening furnaces,tempering furnaces,annealing furnaces,and industrial kilns.

Bayonet heating elements are manufactured from a variety of materials,these include chrome,nickel,aluminum and iron wires. Elements can be designed to operate within most environmental conditions.Elements are often encased within protective tubes or sheaf’s for indirect heating applications or where caustic environments may damage the heating elements.bayonet heating elements are available in high wattage capability in small and large packages and sizes in a variety of package configurations.the heating elements assembly can mounted in any orientation.

Bayonets for heat treat furnaces up to 1800°F can be designed for a range of supply voltages and typically don’t require transformers. Compared to gas systems, Bayonets are more efficient (no heat losses), quieter, and typically require less maintenance.

Bayonets can be used with radiant tubes to protect the elements from atmospheric conditions and provide support to prevent deformation. Standard and custom sizes are available.

1. bayonet type heating element, it is characterized in that: comprise the porcelain piece more than 2, described porcelain piece is passed rod iron (5) successively; Be provided with wiring rod (1) in the first porcelain piece (2); Be wound with resistive band (3) between the first porcelain piece (2) and the second porcelain piece; Resistive band (3) one ends connect wiring rod (1) by the first porcelain piece (2), and the other end passes all the other porcelain pieces successively.

2. bayonet type heating element according to claim 1 is characterized in that: described porcelain piece is circular and which is provided with the hole.

3. bayonet type heating element according to claim 2, it is characterized in that: described hole is square hole.

4. bayonet type heating element according to claim 1, it is characterized in that: described porcelain piece has 5.

5. bayonet type heating element according to claim 1, it is characterized in that: described resistive band (3) is wound in cylindrical shape.

Company Profile

Shanghai Tankii Alloy Material Co., Ltd. Focus on the production of resistance alloy(nichrome Alloy, FeCrAl Alloy, copper nickel alloy, thermocouple wire, precision alloy and thermal spray alloy in the form of wire, sheet, tape, strip, rod and plate. We've already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system. We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.

Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over 35 years in this field. During these years, more than 60 management elites and high science and technology talents were employed. They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market. Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.

Our products, such us nichrome alloy, precision alloy, thermocouple wire, fecral alloy, copper nickel alloy, thermal spray alloy have been exported to over 60 countries in the world. We are willing to establish strong and long-time partnership with our customers. Most complete range of products dedicated to Resistance, Thermocouple and Furnace manufacturers Quality with end to end production control Technical support and Customer Service.
