제품 상세정보
원래 장소: 상해, 중국
브랜드 이름: Tankii
인증: ISO9001:2015
모델 번호: NiCr80/20
지불과 운송 용어
최소 주문 수량: 20 KG
가격: Negotiated price
포장 세부 사항: 합판 깔판 o 합판 상자를 가진 또는 클라이언트의 필요조건에 따라 판지에 있는 스풀, 필요하다면
배달 시간: 7-12 일
지불 조건: L/C, T는 / T, 웨스턴 유니온, MoneyGram 페이팔
공급 능력: 200+TON+MONTH
Ni (분): |
79.5% |
유형: |
저항 합금 |
특징: |
밝은, 단련하는 |
용도: |
비닐 봉투 기계 |
합금 아닙니다: |
합금 |
화학 Compostion: |
니켈 80% 크롬 20% |
Ni (분): |
79.5% |
유형: |
저항 합금 |
특징: |
밝은, 단련하는 |
용도: |
비닐 봉투 기계 |
합금 아닙니다: |
합금 |
화학 Compostion: |
니켈 80% 크롬 20% |

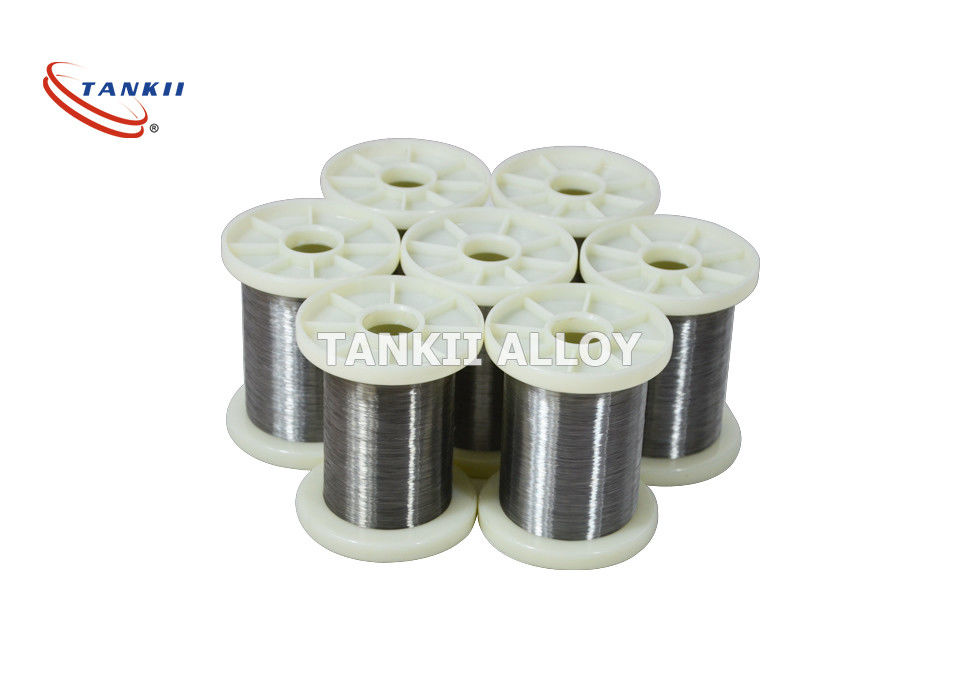

Nickel 80% Chromium 20% Nicr Alloy Wire For Plastic Bag Sealing Industry
1. Detailed Description
Nichrome is basically a name given to nickel-chromium resistance wires. It is a non-magnetic alloy, which consists of 80 percent nickel and 20 percent chromium by weight, and is widely used in heating elements because of its relatively high resistivity. Out of the constituents of nichrome, nickel is an element with the chemical symbol Ni and atomic number 28, whereas chromium is an element with the symbol Cr and atomic number 24. Nickel is generally a silvery-white lustrous metal, and chromium, a steely-gray and hard metal. Nichrome, the alloy, is silvery-gray in color, resistant towards corrosion, and has a high melting point.
Physical Properties of Nichrome
The ultimate tensile strength of nichrome is 105,000 PSI (Pounds per Square Inch) and yield strength is around 50,000 PSI. Following are some of the other physical properties of nichrome.
· Electrical Resistivity at room temperature: 1.0 x 10-6 to 1.5 x 10-6 ohm m
· Thermal Conductivity: 11.3 W/moC
· Magnetic Attraction: None
· Thermal Expansion Coefficient (20oC to 100oC): 13.4 x 10-6/oC
· Temperature Coefficient of Resistivity (25oC to 100oC): 100 ppm/oC
· Specific Gravity: 8.4
· Density: 8400 kg/m3
· Melting point: 1400oC
· Specific Heat: 450 J/kgoC
· Modulus of elasticity: 2.2 x 1011
2. Sealing Machine
Nichrome Wire Type |
Max. Operating Temperature |
Resistivity @ 20°C (68°F) Ω mm2/m (Ω/cmf) |
Applications | Oxidation Resistance |
20 | 1050°C (1920°F) | 0.95 (572) | Terminals attached to nickel-chromium heating elements, element fasteners, refractory anchor bolts | Moderate |
30 | 1050°C (1920°F) | 1.03 (620) | Solid hot plates, open coil heaters in HVAC systems, heaters, de-icing elements | High |
40 | 1100°C (2010°F) | 1.04 (626) | Heaters, de-icing elements, heating cables and rope heaters, resistors | |
60 | 1150°C (2100°F) | 1.11 (668) | Household heating elements, moderate heat, high humidity environments | |
70 | 1250°C (2280°F) | 1.18 (709) | Industrial furnace electrical heating elements | |
80 | 1180°C (2150°F) | 1.09 (656) | Industrial furnaces, home appliance heating elements |
